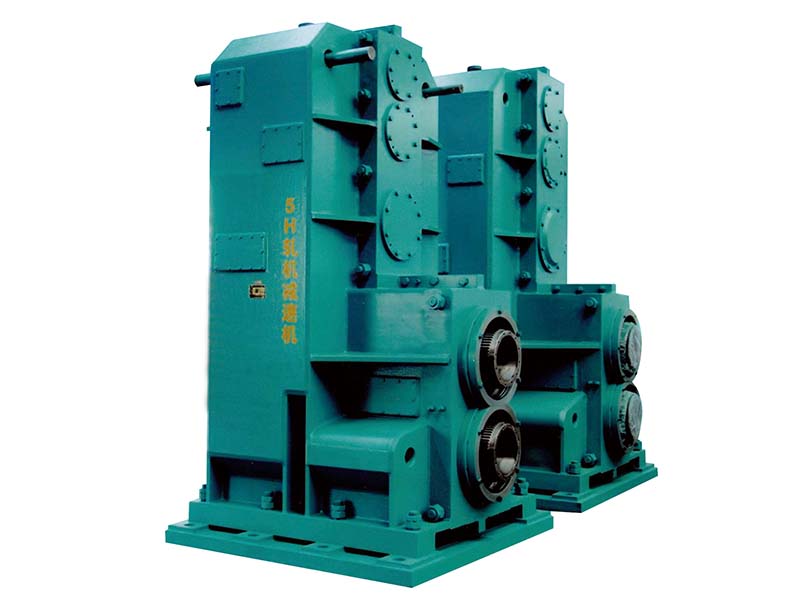

Main Drive Gearboxes for Bar & Wire Rolling
1

Main Drive Gearboxes for Bar & Wire Rolling

  • Ratio: Up to 120
  • Torque: Up to 1200kN.m
  • Rollers Diameter: Φ350~Φ650mm
  • Parameters: Customizable
Share With :

AOKMAN® main drive gearboxes for bar & wire rolling can provide perfect solutions for transmission mechanism of the production lines of bars, wires, and profiles. The gearboxes for bar and wire rolling are specially designed and optimized by alternatively arranging horizontal gearboxes and vertical gearboxes to ensure the shapes and sizes of rolling products.

The horizontal gearboxes are driven by parallel shafts, and the vertical gearboxes are driven by spiral bevel gears and parallel shafts.

The basic version gearboxes are with the structure of single shaft input and double shafts output or three shafts output. The output shafts are coupled with two or three rollers.

The gearboxes for bar and wire rolling have the features of compact structure, impact resistance, high load capacity, low noise, low vibration, steady operation.

Output Configurations:

  • Solid Shaft Output
  • Hollow Shaft Output

Main Features:

  • 1. Compact design structure
  • 2. Low noise
  • 3. Study and stable gearbox housing
  • 4. High reliability via forced lubrication to bearings and spraying circulation lubrication
  • 5. Customizable sizes and configurations according to bar and wire rolling applications

Technical Parameters:

  • Ratio: Up to 120
  • Torque: Up to 1200kN.m
  • Output Shaft Center Height: Up to 1100mm
  • Rollers Diameter: Φ350~Φ650mm
  • Please consult AOKMAN® technical engineers for detailed parameters.

Applications:

  • Large, medium and small bar production lines
  • Wire and high-speed wire production lines
  • Sectional steel production lines
