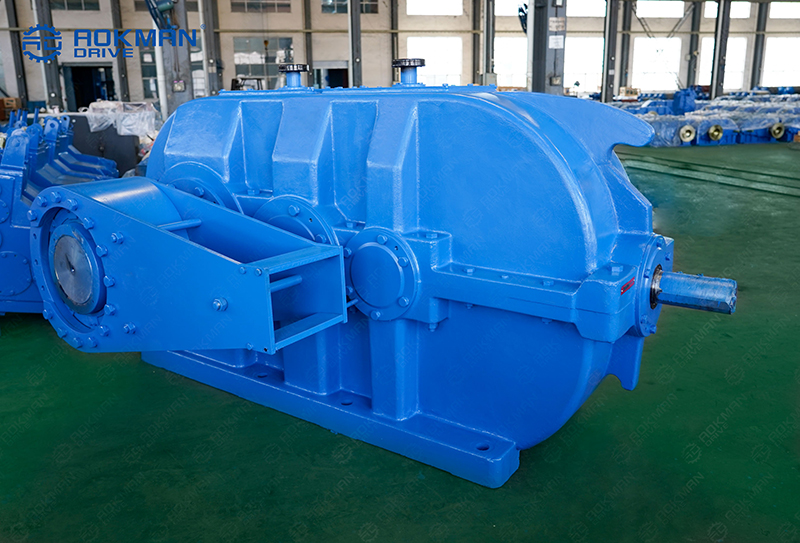

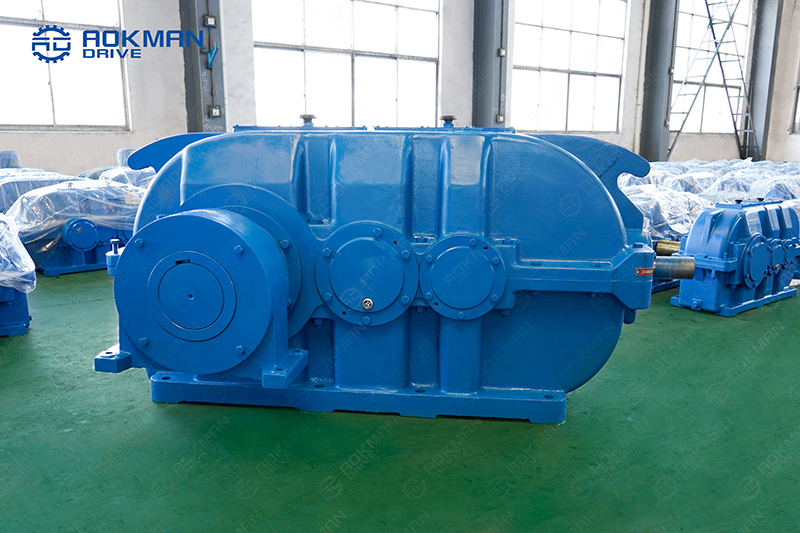

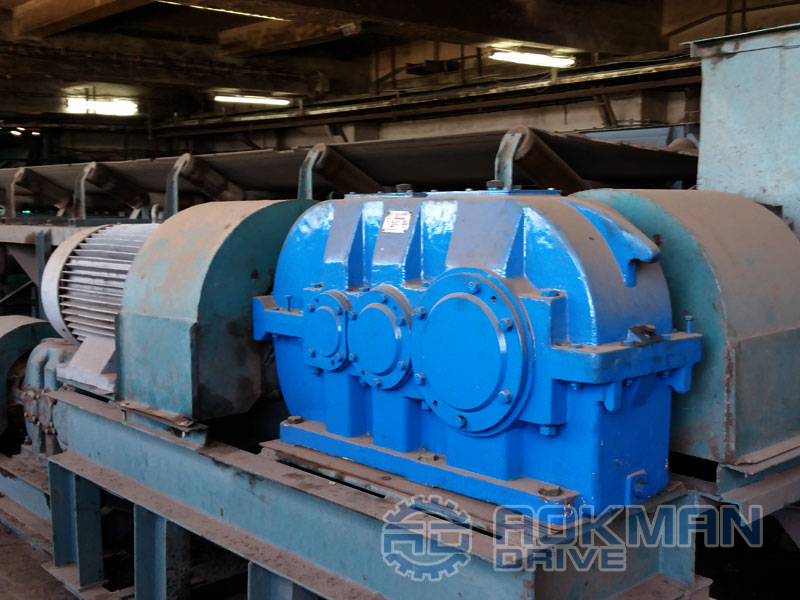

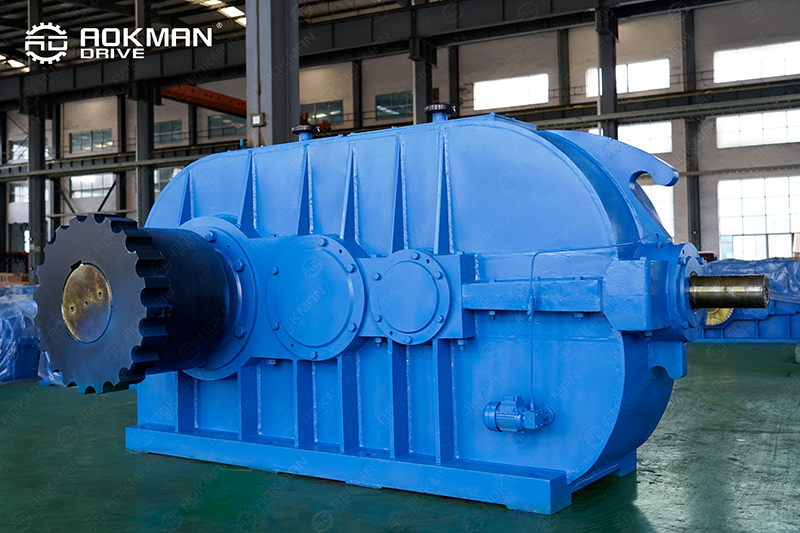

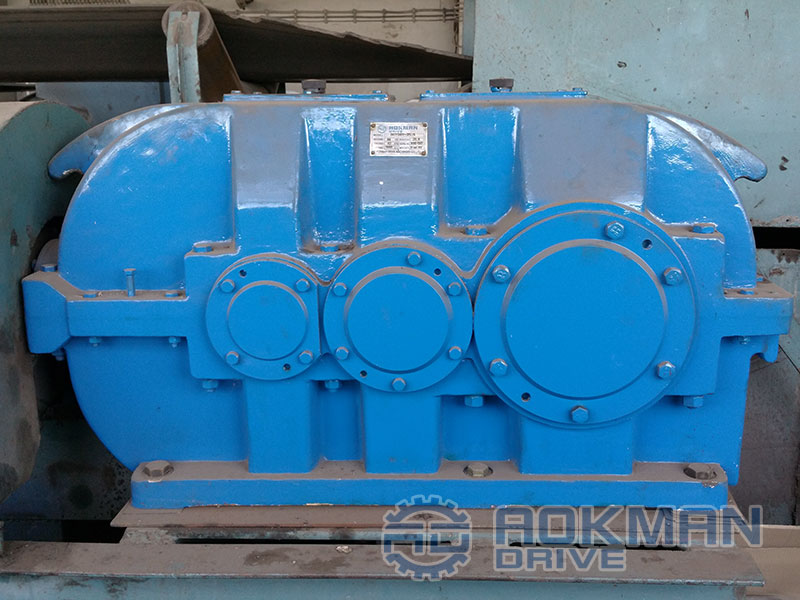

DY Series Right Angle Gearboxes

  • Center Distance: 160mm~800mm
  • Ratio: 8~500
  • Input Speed: 1500,1000,750r/min
  • Gearset: Bevel Helical Gears
  • Gear Hardness: HRC54-62
  • Installation Form: Horizontal
  • Shafts Position: Right Angle
Share With :

Components:

1. Housing: Cast Iron or Steel Plate Welding
2. Gear Set: Hardened Helical Gear Pairs & Bevel Gear Pairs, Carburizing, Quenching, Grinding, Gear Hardness HRC54-62
3. Input Configurations:
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output
Keyed Hollow Shaft Output
Hollow Shaft Output with Shrink Disk
5. Main Options:
Backstop
Forced Lubrication Oil Pump
Cooling Fan, Cooling Coils

Models:

DBY Series, DCY Series, DFY Series

Features:

1. Optional welding steel plate gear box
2. High quality alloy steel bevel helical gears, carburizing, quenching, grinding, large load capacity
3. Optimized design, interchangeable spare parts
4. High efficiency, high reliability, long service life, low noise
5. Output shaft rotation direction: clockwise, counterclockwise or bidirectional
6. Optional backstop and lengthening output shafts

Parameters:

DY Series Models Ratio
DBY (2 Stage) DBY160, DBY180, DBY200, DBY224, DBY250, DBY280, DBY315, DBY355, DBY400, DBY450, DBY500, DBY560 8~14
DCY (3 Stage) DCY160, DCY180, DCY200, DCY224, DCY250, DCY280, DCY315, DCY355, DCY400, DCY450, DCY500, DCY560, DCY630, DCY710, DCY800 16~50
DFY (4 Stage) DFY160, DFY180, DFY200, DFY225, DFY250, DFY280, DFY320, DFY360, DFY400, DFY450, DFY500, DFY560, DFY630, DFY710 90~500

Installation:

Horizontal Mounted

Lubrication:

Oil Dip and Splash Lubrication
Forced Lubrication

Cooling:

Natural Cooling
Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)
