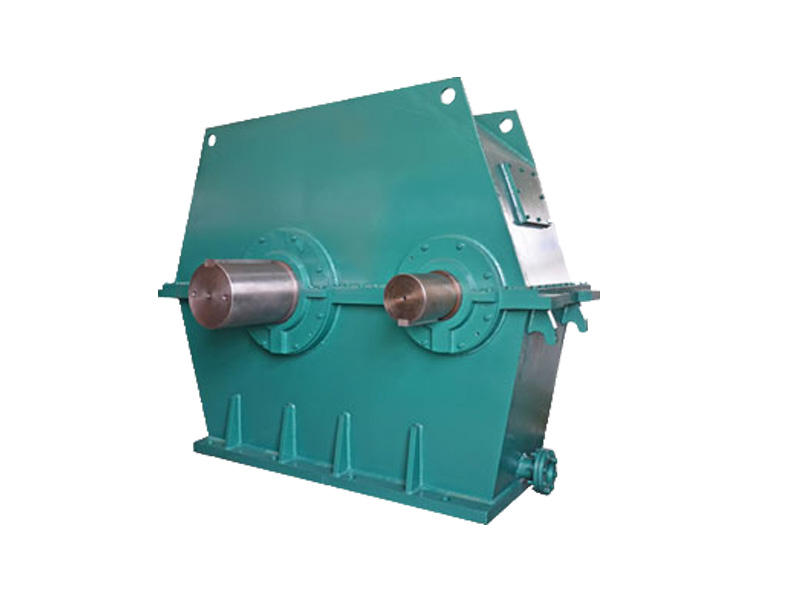

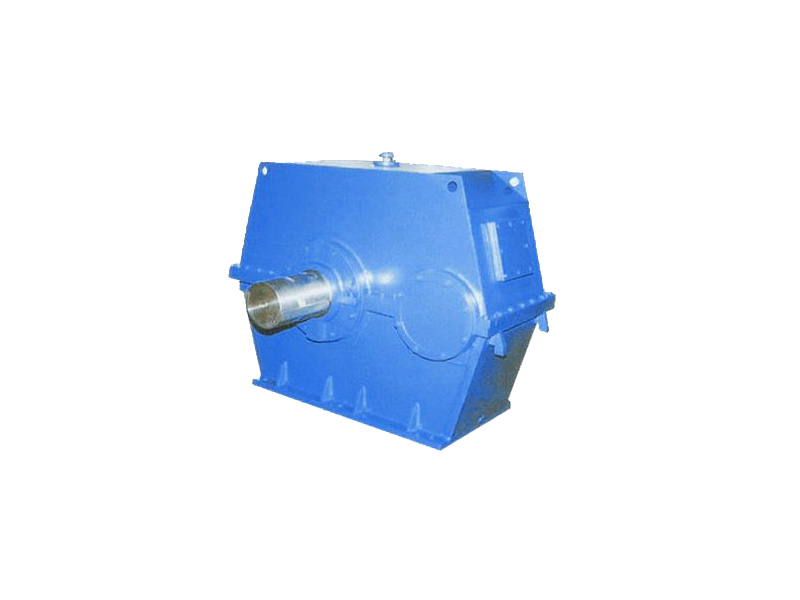

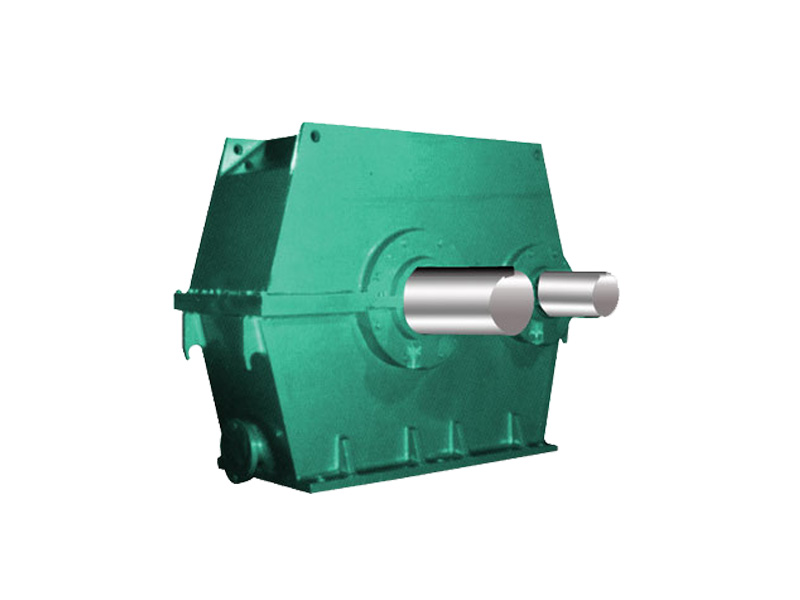

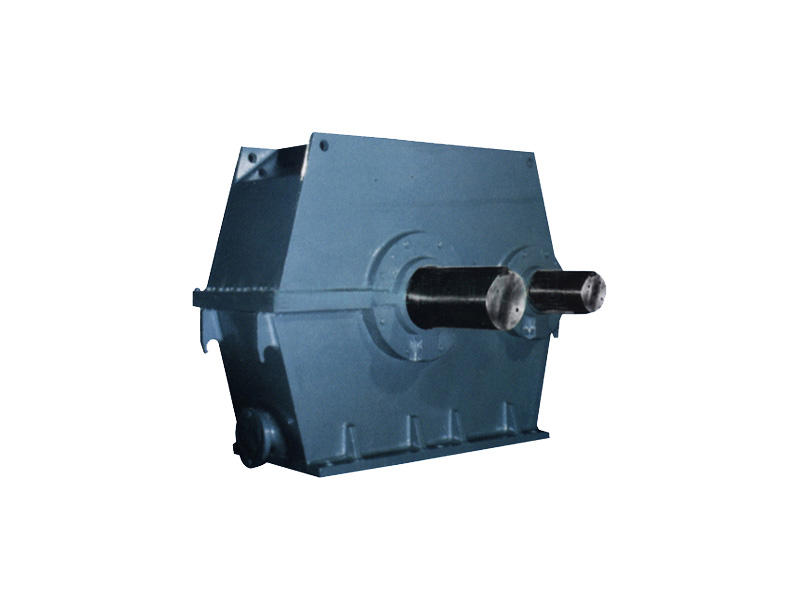

MBY/MBYX Series Edge Drive Mill Gearboxes

  • Rated Power: 200kW~5000kW
  • Ratio: 4:1~7.1:1
  • Center Distance: 400~1100mm
  • Gearset: Parallel Shaft Helical Gears
  • Shafts Position: Parallel Shaft
  • Mounted: Horizontal Mounting
  • Housing: Cast Iron,Steel Plate Welding
Share With :

AOKMAN® superior performance and specially designed MBY/MBYX series edge drive mill gearboxes act as the primary gearbox for edge drive device of tube mills.

Components:

1. Gearbox Housing: Cast Iron, Steel Plate Welding
2. Gearset: 1 Stage Hardened Helical Gears with Parallel Shaft
3. Input Configurations:
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output
5. Main Options:
  • Auxiliary Drive
  • Lubrication Oil Station

Models & Parameters:

  • MBY400~MBY1100 (Ratio: i=4, 4.5, 5, 5.6, 6.3, 7.1)
    Output Shaft Diameter: 160~360mm
  • MBYX800~MBYX1000 (Ratio: i=4.5, 5, 5.6, 6.3, 7.1)
    Output Shaft Diameter: 280~320mm

Features:

1. Optimized meshing accuracy of gears, lower noise, and high efficiency
2. The gearbox housing is analyzed and optimized by FEM, in order to ensure less deformation during operation process, and more stable operation
3. Secured manufacturing quality and higher reliability
4. Highly modular design, multiple optional accessories
5. Short delivery time, cost-effective gearbox for tube mills
6. Parallel shaft gearbox MBY series has single or double input shaft and output shaft in one side or two sides
7. Customizable sizes and configurations according to the requirements

Applications:

  • Tube Mills, Cement Mills, Coal Mills
  • Applied to crushing ores, coal sheets, cement clinker in building materials, coal, mine, metallurgy, and chemical industries

Installation:

Horizontal Mounted

Lubrication & Cooling:

Lubrication Station
