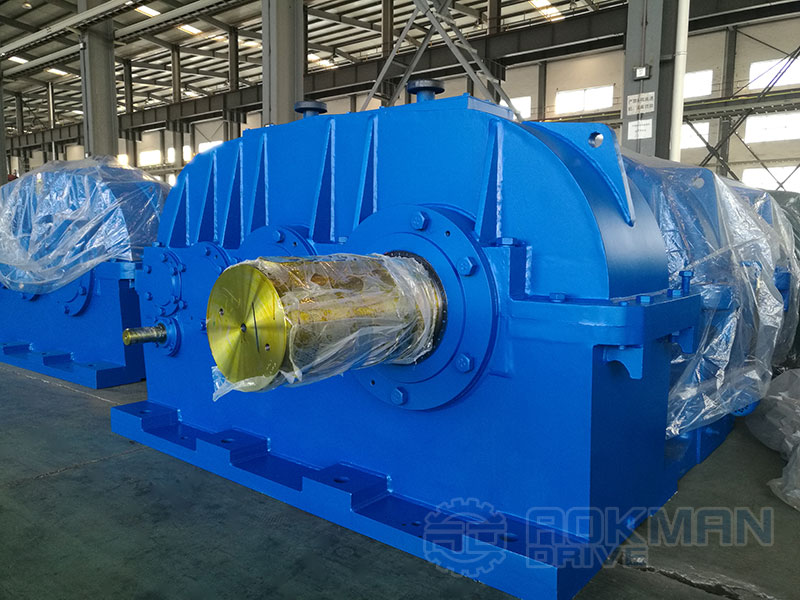

ZFY Series Parallel Shaft Helical Gearbox

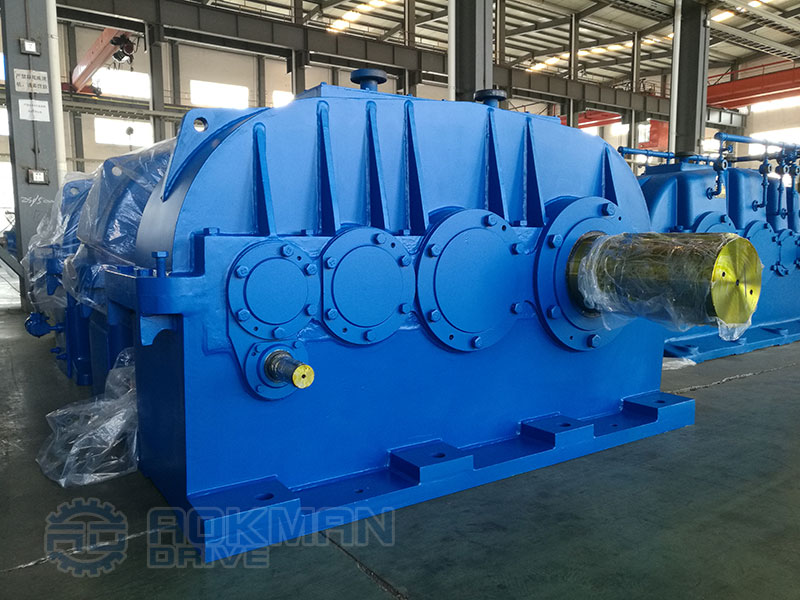

ZFY Series Parallel Shaft Helical Gearboxes

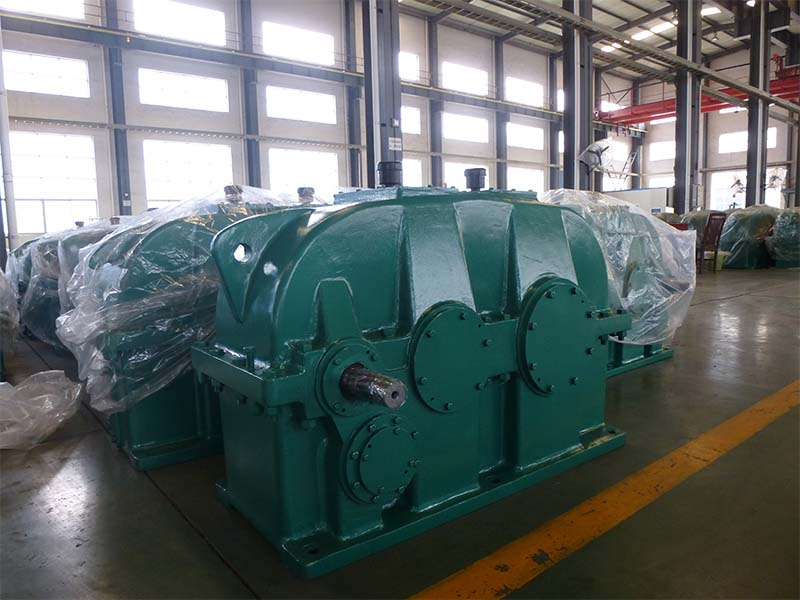

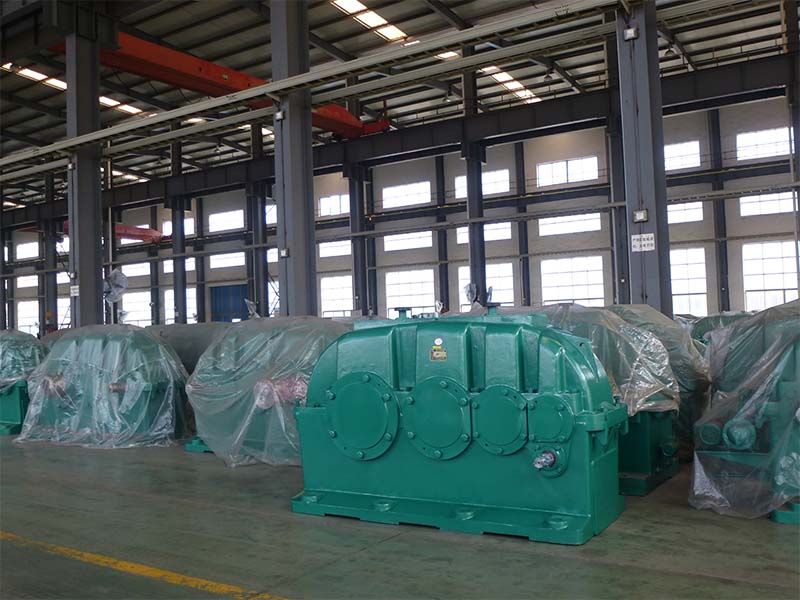

ZY Series Helical Cylindrical Gearbox

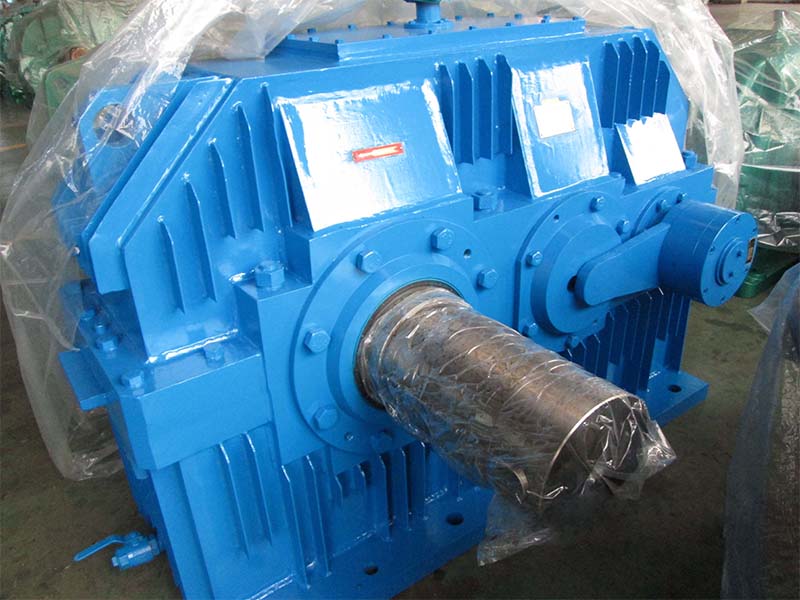

ZY Series Helical Cylindrical Gearbox
ZY Series Helical Gearboxes
1 2 3 4 5

ZY Series Parallel Shaft Gearboxes

  • Center Distance: 80mm~710mm
  • Ratio: 1.25~500
  • Input Speed: 1500,1000,750r/min
  • Gearset: Cylindrical Helical Gears
  • Gear Hardness: HRC54-62
  • Installation Form: Horizontal or Vertical
  • Shafts Position: Parallel Shaft
Share With :

Components:

1. Housing: Cast Iron or Steel Plate Welding
2. Gear Set: Hardened Helical Gear Pairs, Carburizing, Quenching, Grinding, Gear Hardness HRC54-62
3. Input Configurations:
Single or Double Keyed Solid Shaft Input
4. Output Configurations:
Single or Double Keyed Solid Shaft Output
5. Main Options:
Backstop
Forced Lubrication Oil Pump
Cooling Fan, Cooling Coils

Models:

ZDY Series, ZLY Series, ZSY Series, ZFY Series

Features:

1. Optional welding steel plate gear box
2. High quality alloy steel helical gears, carburizing, quenching, grinding, large load capacity
3. Optimized design, interchangeable spare parts
4. High efficiency, high reliability, long service life, low noise
5. Output shaft rotation direction: clockwise, counterclockwise or bidirectional
6. A variety of shaft configurations: single or double input and output shaft in one side or two sides
7. Optional backstop and lengthening output shafts

Parameters:

ZY Series Models Ratio
ZDY (1 Stage) ZDY80, ZDY100, ZDY125, ZDY160, ZDY200, ZDY250, ZDY280, ZDY315, ZDY355, ZDY400, ZDY450, ZDY500, ZDY560 1.25~6.3
ZLY (2 Stage) ZLY112, ZLY125, ZLY140, ZLY160, ZLY180, ZLY200, ZLY224, ZLY250, ZLY280, ZLY315, ZLY355, ZLY400, ZLY450, ZLY500, ZLY560, ZLY630, ZLY710 6.3~20
ZSY (3 Stage) ZSY160, ZSY180, ZSY200, ZSY224, ZSY250, ZSY280, ZSY315, ZSY355, ZSY400, ZSY450, ZSY500, ZSY560, ZSY630, ZSY710 22.4~100
ZFY (4 Stage) ZFY180, ZFY200, ZFY225, ZFY250, ZFY280, ZFY320, ZFY360, ZFY400, ZFY450, ZFY500, ZFY560, ZFY630, ZFY710 100~500

Installation:

Horizontal Mounted
Vertical Mounted

Lubrication:

Oil Dip and Splash Lubrication
Forced Lubrication

Cooling:

Natural Cooling
Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)
