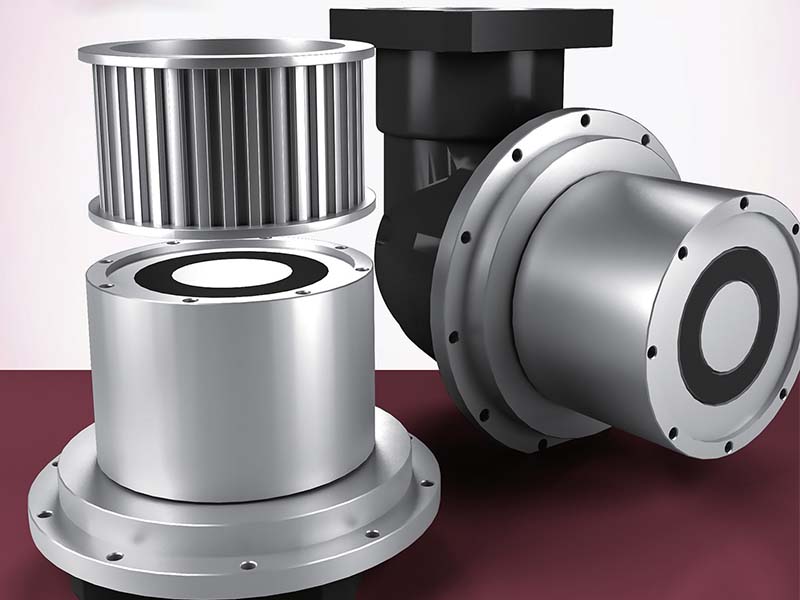

High Precision Planetary Gearboxes

  • Ratio: 3~200
  • Rated Torque: 9N.m~2000N.m
  • Stage: 1,2 Stage
  • Gearset: Precision Planetary Gears

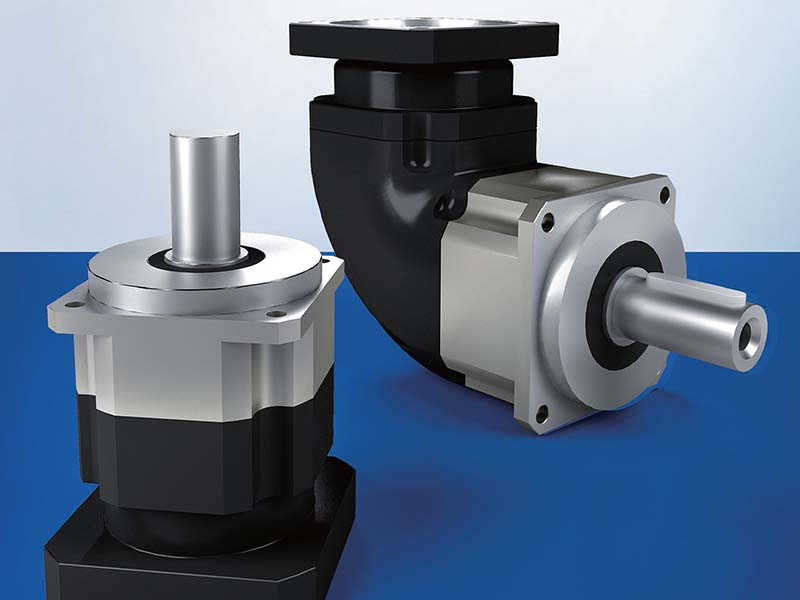

  • Shafts Position: Inline,Right Angle
  • Ingress Protection: IP65,IP64
Share With :

Components:

1. Gearbox Housing & Flange: Aluminum-alloy Die Casting ADC12
2. Gearset: Precision Planetary Gear Set
Ring Gears: 40Cr
Planetary Gears: 20CrMnTi, Surface Hardness HRC58~62, Inner Hardness HRC33~40
3. Input Configurations:
Keyed Hollow Shaft with Motor Adaptor
4. Output Configurations:
Keyed Solid Shaft Output

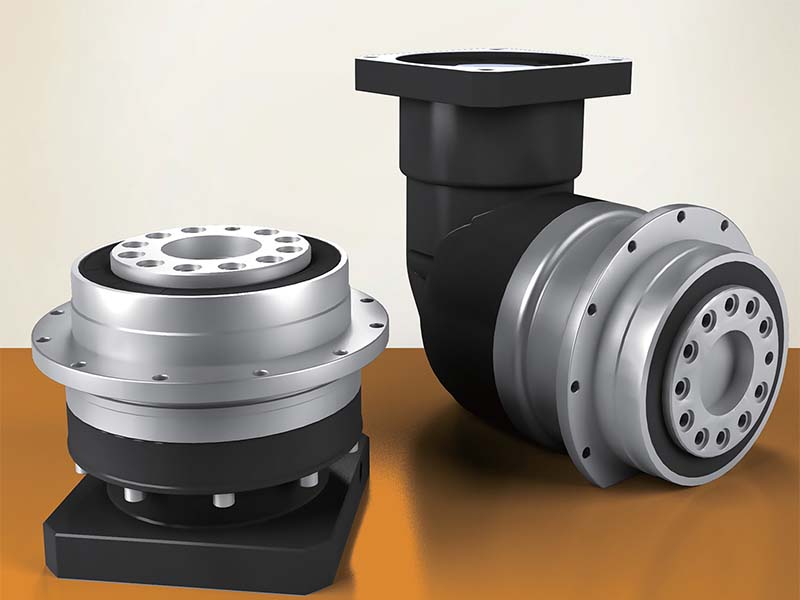

Keyless Solid Shaft Output
5. Applicable Motors:
Servo Motors, Stepper Motors

Models:

PAB/PABR Series, PPG Series

Features:

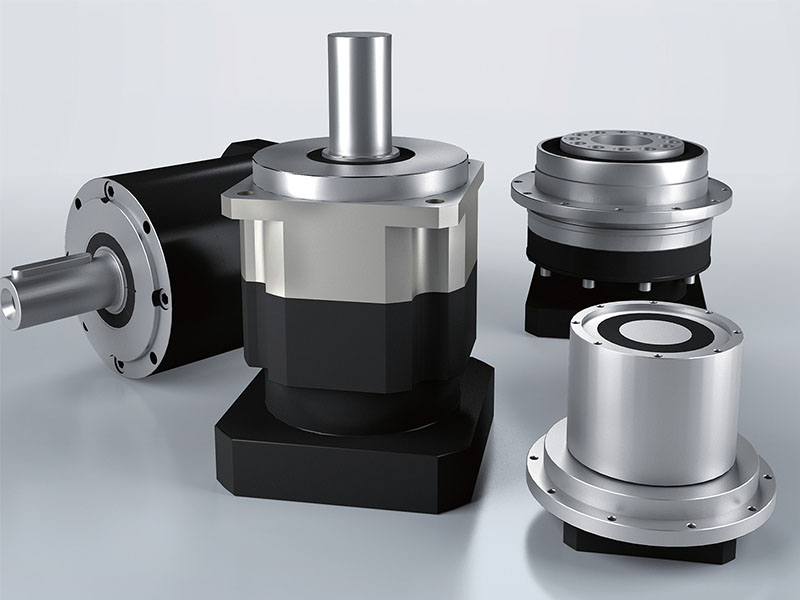

1. AOKMAN® high percision planetary gearboxes including a full series of inline(linear) and right angle precision planetary gearboxes
2. High precision, high dynamic, low backlash
3. Up to 3 optional backlash: Ultra Precision Backlash, High Precision Backlash, Standard Backlash
4. Superior performance for precision industrial automation and servo applications

Parameters:

Series Stage Models Ratio Rated Torque Output Flange Dia. Output Shaft Dia. Backlash Efficiency
PAB (Linear) 1 PAB042, PAB060, PAB090, PAB115, PAB142, PAB180, PAB220 3, 4, 5, 6, 7, 8, 9, 10 14N.m~2000N.m 42mm~220mm Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 ≤1, ≤3, ≤5 arcmin ≥97%
2 PAB042, PAB060, PAB060A, PAB090, PAB090A, PAB115, PAB142, PAB180, PAB220 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 14N.m~2000N.m 42mm~220mm Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 ≤3, ≤5, ≤7 arcmin ≥94%
PABR (Right Angle) 1 PABR042, PABR060, PABR090, PABR115, PABR142, PABR180, PABR220 3, 4, 5, 6, 7, 8, 9, 10, 14, 20 9N.m~2000N.m 42mm~220mm Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 ≤2, ≤4, ≤6 arcmin ≥95%
2 PABR042, PABR060, PABR090, PABR115, PABR142, PABR180, PABR220 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200 14N.m~2000N.m 42mm~220mm Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 ≤4, ≤7, ≤9 arcmin ≥92%

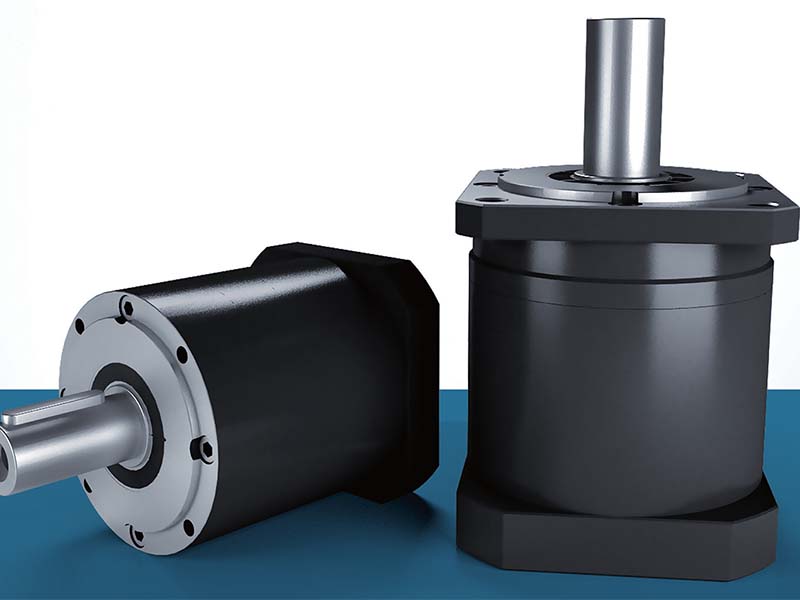

PPG (Linear) 1 PPG040, PPG060, PPG080, PPG080A, PPG120, PPG120A, PPG160 3, 4, 5, 7, 10 9N.m~423N.m - Φ10, Φ14, Φ20, Φ25, Φ40 ≤6, ≤8 arcmin ≥97%
2 PPG040, PPG060, PPG080, PPG080A, PPG120, PPG120A, PPG160 15, 16, 20, 25, 30, 35, 40, 50, 70, 100 9N.m~423N.m - Φ10, Φ14, Φ20, Φ25, Φ40 ≤8, ≤10 arcmin ≥94%

Applications:

Precision Industrial Automation & Servo Applications

Lubrication:

PAB/PABR Series: Synthetic Grease (NYOGEL 792D)
PPG Series: Castrol LMX Grease
