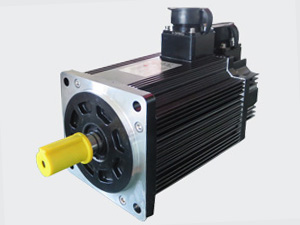

Permanent Magnet AC Servo Motors

  • Rated Power: 0.2~7.5kW
  • Rated Voltage: 220,380VAC
  • Rated Speed: 1000~3000RPM
  • Rated Torque: 0.6~48N.m
  • Encoder Resolution: 2500PPR
  • Insulation Class: F
  • Ingress Protection: IP65
Share With :

Frame Sizes: 60, 80, 90, 110, 130, 150, 180

Rotor: Permanent Magnets (NdFeB 38SH)

Brakes:

  • Without Brakes
  • Electromagnetic Brakes (Power Supply 24VDC)
  • Permanent Magnet Brakes

Feedback:

  • Photoelectric Pulse Encoder
  • Resolver

Inertia: 0.0175~9.5 x 10-3 kg·m2

Encoder Resolution: 2500PPR (Pulse Per Revolution)

Insulation Class: F

Ingress Protection: IP65

Working Temperature: -20℃~40℃

Features:

  • High quality rare-earth magnets neodymium iron boron (NdFeB)
  • High performance
  • AOKMAN® permanent magnet ac servo motors are with extremely precise and efficient control characteristics

Parameters:

Frame Sizes Rated Power Rated Voltage Rated Speed Rated Torque Shaft Dia. Flange Dia.
60 0.2~0.4kW 220V 3000RPM 0.6~1.3Nm Φ14 Φ70
80 0.4~1.0kW 220V 2000,2500,3000RPM 1.3~4.0Nm Φ19 Φ90
90 0.73~1.0kW 220V 2000,2500,3000RPM 2.4~4.0Nm Φ16 Φ100
110 0.6~1.8kW 220V 2000,3000RPM 2.0~6.0Nm Φ19 Φ130
130 1.0~3.8kW 220V 1000,1500,2500RPM 4.0~15Nm Φ22 Φ145
150 3.8~5.5kW 220V 2000,2500RPM 15~27Nm Φ28 Φ165
180 2.7~7.5kW 220V,380V 1000,1500,2500RPM 17.2~48Nm Φ35 Φ200
