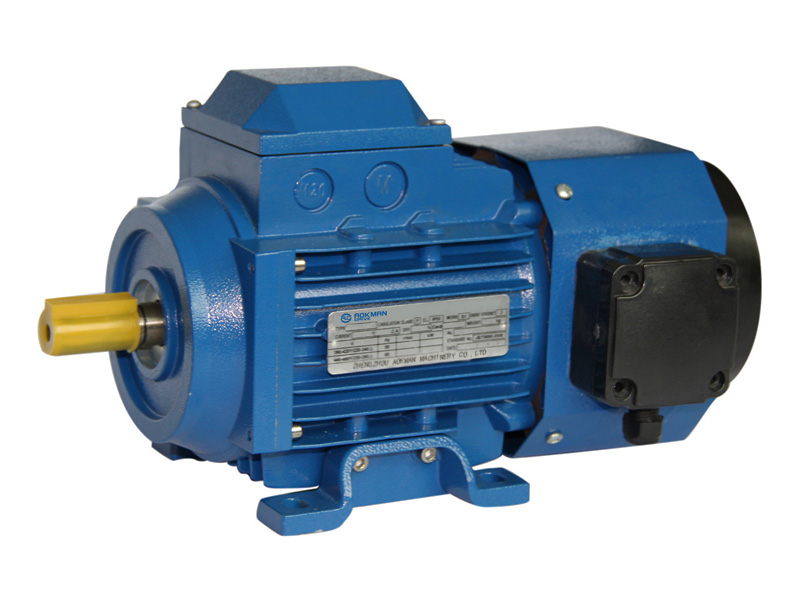

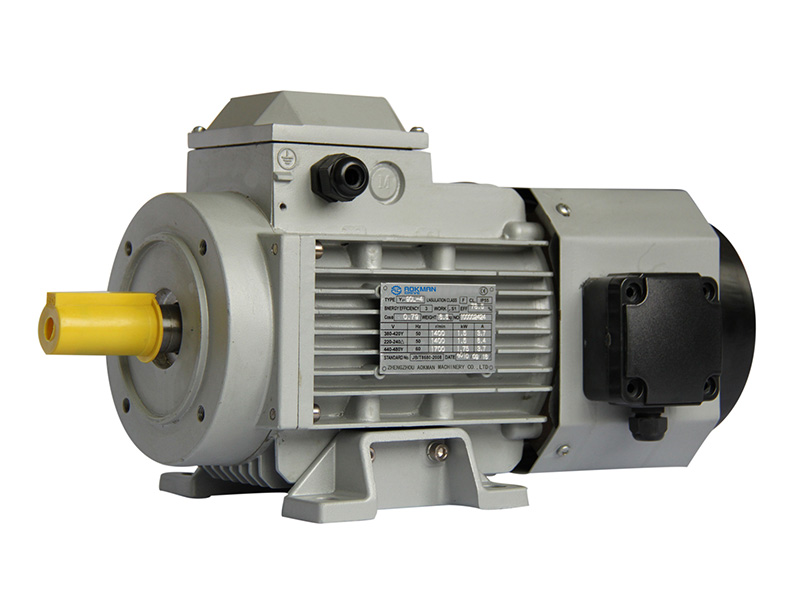

YVF Series Inverter Motors
YVF Series Variable Frequency Motors
1 2

YVF Series Variable Frequency Motors

  • Power: 0.12 kW~22 kW
  • Poles: 2P, 4P, 6P
  • Frequency: Variable
  • Protection Class: IP54, IP55, IP56
  • Insulation Class: F
  • Bearing: C&U, NSK, SKF
Share With :

AOKMAN® YVF series variable frequency 3 phase asynchronous motors (induction motors) adopts IEC standards, ABB Motor square design, cast aluminum housing, detachable mounting feet. Dustproof and waterproof, low noise, low vibration, energy saving, long service life. YVF series variable frequency motors are exclusively optimized for variable speed applications.

Components:

1. Housing: Die-casting Aluminum
2. Shaft: 40Cr
3. Magnet Wires: QZ-2/155, QZ-2/180
4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600
5. Bearings: C&U, NSK, SKF

Models & Parameters:

  • Voltage: 380V
  • Frequency: 50Hz/60Hz, Variable Frequency
  • Power: 0.12 kW~22 kW (0.16HP~30HP)
  • Poles: 2P, 4P, 6P
  • Output Speed: 3000RPM, 1500RPM, 1000RPM
  • Frame Sizes: H63~H180
  • Shaft Diameter: Φ11~Φ48
  • Ingress Protection: IP54, IP55, IP56
  • Insulation Level: F
  • Duty: Continuous duty (S1)
  • Cooling: IC411
  • Brake: Optional Brakes

Mounting Options:

  • IM B3
  • IM B5, IM B14
  • IM B34, IM B35
