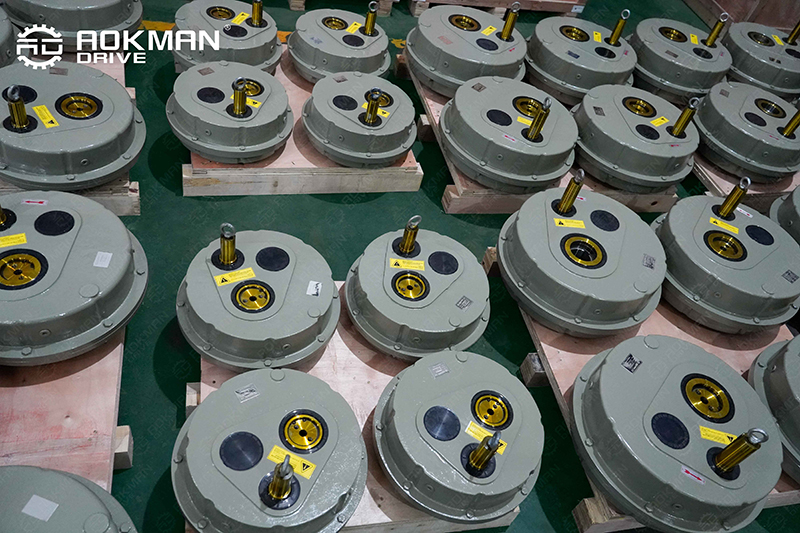

ATA Series Shaft Mounted Gearbox Reducer

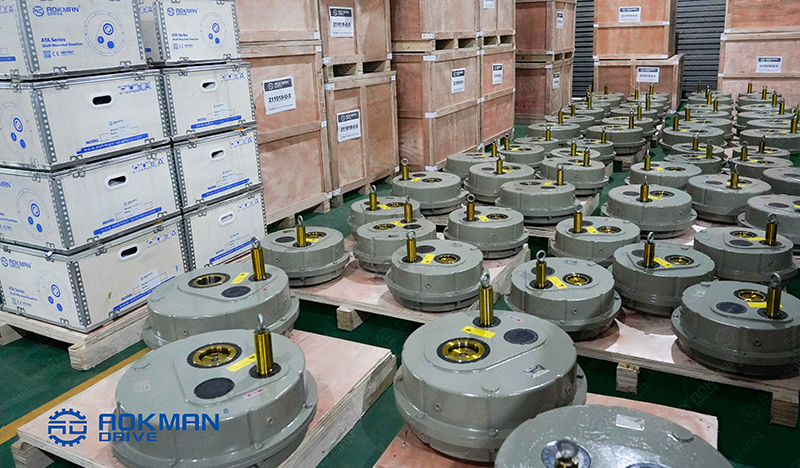

ATA Series Shaft Mounted Speed Reducers

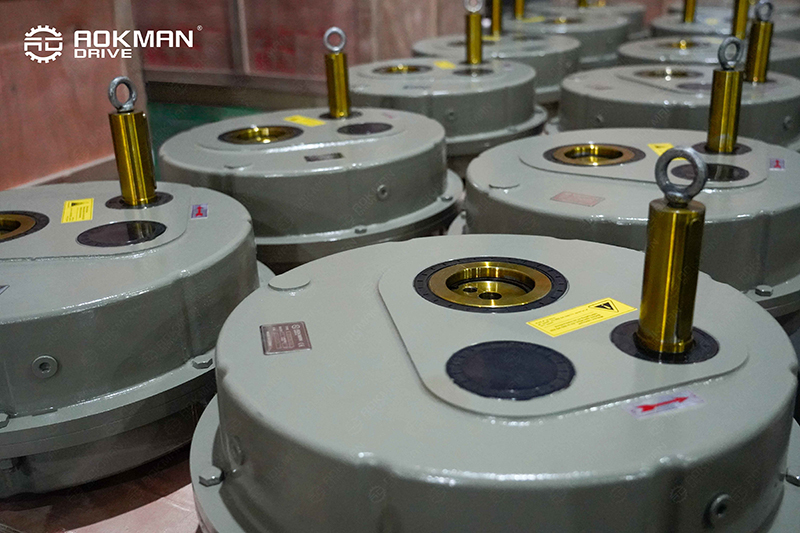

ATA Series Shaft Mounted Gearbox
ATA Series Shaft Mounted Reducers Packaging
ATA Series Shaft Mounted Gear Reducers Wooden Box Packaging
1 2 3 4 5

ATA Series Shaft Mounted Gearbox

  • Rated Power: 1.1kW~193kW
  • Rated Torque: 180~17000N.m
  • Gear Profile: Hardened Helical Gears
  • Input Speed: 1400, 900, 500r/min
  • Output Speed: 25~300r/min
  • Ratio: 5,7,10,…20,25,31
  • Installation Form: Hanging Shaft Mounted
  • Backstop: Optional
Share With :

Components:

1. Housing: Nodular Cast Iron(Ductile Iron) QT600
2. Gears Profile: Hardened Helical Gears
3. Gears Material: 20CrMnTi
4. Gears Processing: Carburizing, Quenching, Grinding
5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-207
6. Gears Accuracy: 6 Class
7. Shafts Material: 40Cr
8. Input Configurations:
Keyed Solid Shaft Input
IEC Normalized Motor Flange
9. Output Configurations:
Keyed Hollow Shaft Output
10. Oil Seal: TAIWAN SOG
11. Bearings: NSK, SKF, FAG, HRB, ZWZ, LYC
12. Spare Parts: Torque arm, Optional Backstop

Models:

1 Stage: ATA30, ATA35, ATA40, ATA45, ATA50, ATA60, ATA70, ATA80, ATA100, ATA125
2 Stage: ATA35D, ATA40D, ATA45D, ATA50D, ATA60D, ATA70D, ATA80D, ATA100D, ATA125D

Features:

1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded ATA30) to prevent backdriving in case of incline conveyors
6. Dimensions are same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

Parameters:

Models Output Bore Dia. Maximum Torque Nominal Ratio(i)
ATA30 30mm 180Nm 5
7
10
12.5
15
20
25
31
ATA35 35mm 420Nm
ATA40 40mm/45mm 950Nm
ATA45 45mm/50mm/55mm 1400Nm
ATA50 50mm/55mm/60mm 2300Nm
ATA60 60mm/70mm 3600Nm
ATA70 70mm/85mm 5100Nm
ATA80 80mm/100mm 7000Nm
ATA100 100mm/125mm 11000Nm
ATA125 125mm/135mm 17000Nm

Applications:

Material Handling Industry, Quarrying and Mining Industry
Belt Conveyors Transmission Mechanism:
Mining Equipment, Concrete Batching Plant, Stone Crushers, Sand Making Production Line

Installation:

Hanging Shaft Mounted With Torque Arm
Belt Conveyor & Pulley Drive System: ATA, Electric Roller, Pulley, Electric Motor, Torque Arm
Belt Conveyor & Pulley Drive System

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
