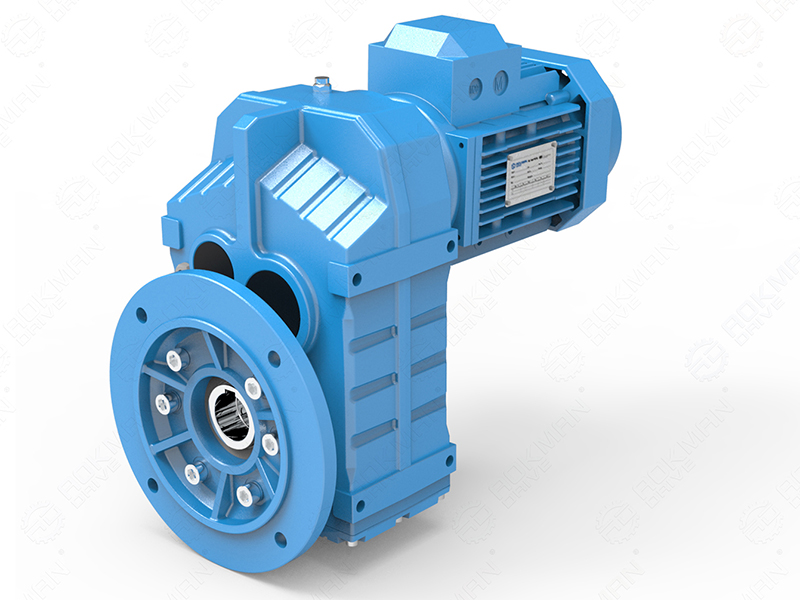

B5 Flange Mounted Hollow Shaft Output FAF Series Parallel Shaft Gear Motors
1 2 3 4

F Series Parallel Shaft Gear Motors

  • Rated Power: 0.18kW~200kW
  • Max. Torque: Up to 18000N.m
  • Gear Arrangement: Helical Gears
  • Shafts Position: Parallel Shaft
  • Ratio: 3.81~270.18
  • Installation Form: Foot, Flange, Shaft Mounted
Share With :

Components:

1. Housing: Cast Iron
2. Gears: Hardened Helical Gears
3. Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
4. Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
5. Output Configurations:
Solid Shaft Output
Hollow Shaft Output

Models:

F Series - Foot-mounted, solid shaft output
FAB Series - Foot-mounted, hollow shaft output
FA Series – Keyed hollow shaft output
FF Series – B5 Flange-mounted, solid shaft output
FAF Series – B5 Flange-mounted, hollow shaft output
FAZ Series – B14 Flange-mounted, hollow shaft output
FAT Series – Hollow shaft output, torque arm
FH, FHB, FHF, FHZ Series – Hollow shaft output, shrink disk
FV, FVB, FVF, FVZ Series – Hollow shaft output, splined hollow shaft
F(FA, FF, FAF, FAB, FAZ)S Series – Solid shaft input

Features:

1. Modular design, compact structure. Extra-slim parallel shaft helical gearmotors are the perfect solution when space is limited
2. F series parallel shaft helical gearmotors are typically used in conveyors and materials processing applications
3. Multi-stage(2 or 3 stages) gear units for low output speed
4. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
5. Can be combined with other types of gearboxes (Such as R Series, UDL Series)
6. Optional mounting options (foot-mounted, flange-mounted, shaft-mounted)

Parameters:

Models Output Shaft Dia. Input Shaft Dia. Power(kW) Ratio Max. Torque(Nm)
Solid Shaft Hollow Shaft
F38 25mm 30mm 16mm 0.18~3.0 3.81~128.51 200
F48 30mm 35mm 16mm 0.18~3.0 5.06~189.39 400
F58 35mm 40mm 19mm 0.18~5.5 5.18~199.70 600
F68 40mm 40mm 19mm 0.18~5.5 4.21~228.99 820
F78 50mm 50mm 24mm 0.37~11 4.30~281.71 1500
F88 60mm 60mm 28mm 0.75~22 4.20~271.92 3000
F98 70mm 70mm 38mm 1.1~30 4.68~276.64 4300
F108 90mm 90mm 42mm 2.2~45 6.20~255.25 7840
F128 110mm 100mm 55mm 7.5~90 4.63~172.33 12000
F158 120mm 120mm 70mm 11~200 12.07~270.18 18000

Installation:

Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
