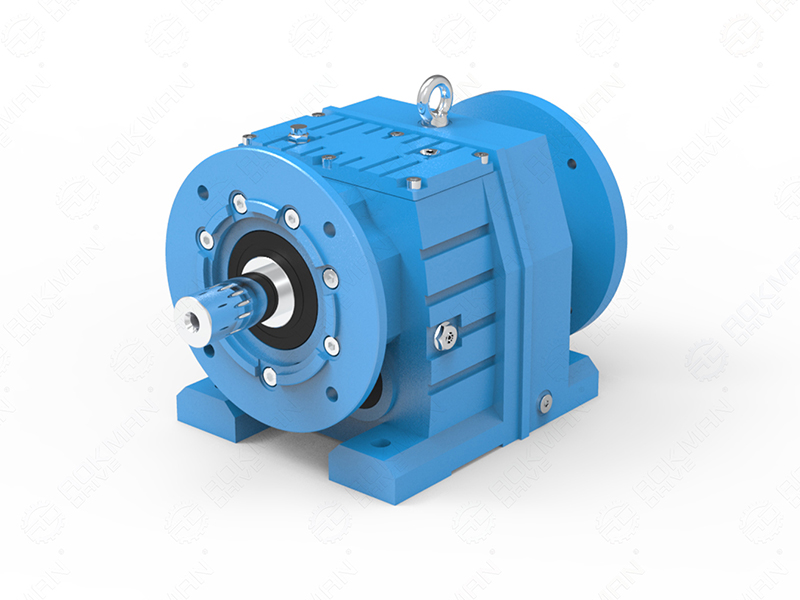

Foot-mounted R Series Inline Helical Gear Motors

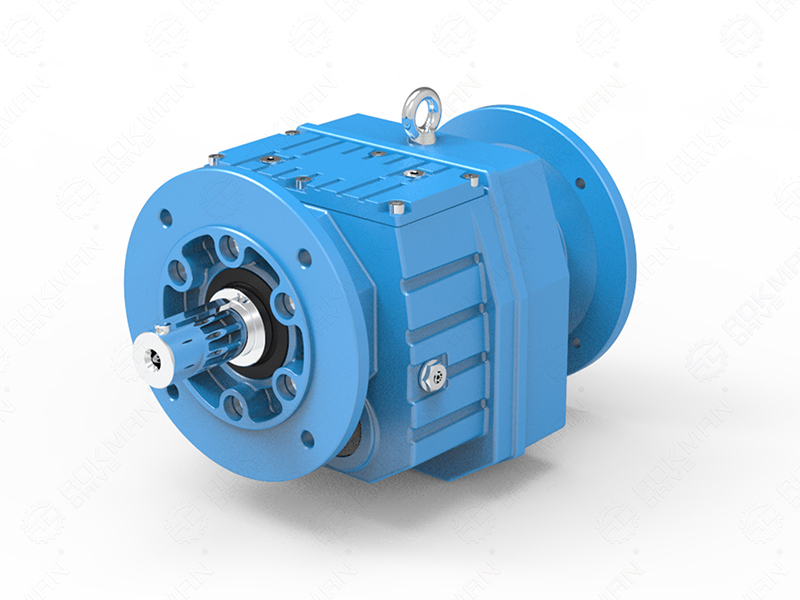

Flange-mounted RF Series Inline Helical Gear Motors

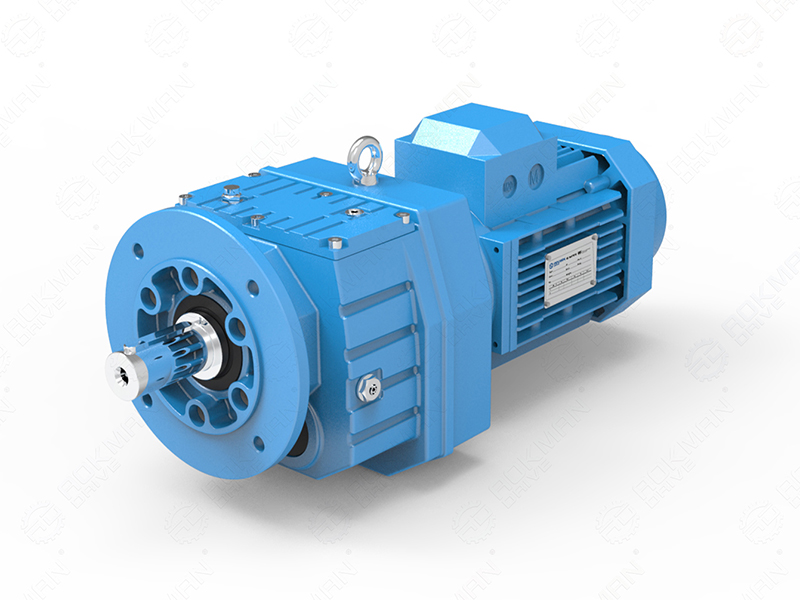

Foot-mounted Single Stage RX Series Helical Gear Motors
1 2 3

R Series Inline Helical Gear Motors

  • Rated Power: 0.18kW~160kW
  • Max. Torque: Up to 18000N.m
  • Gear Arrangement: Hardened Helical Gears
  • Shafts Position: Inline or Parallel
  • Ratio: 1.3~289.6
  • Installation Form: Foot or Flange Mounted
Share With :

Components:

1. Housing: Cast Iron
2. Gears: Helical Gears
3. Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC or NEMA Motor Flange
4. Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
5. Output Configurations:
Solid Shaft Output

Models:

R Series (Foot-mounted): R18~R168
RS Series (Foot-mounted, Solid Shaft Input)
RF Series (Flange-mounted): RF18~RF168
RFS Series (Flange-mounted, Solid Shaft Input)
RX Series (1 Stage, Foot-mounted): RX38~RX158
RXS Series (1 Stage, Foot-mounted, Solid Shaft Input)
RXF Series (1 Stage, Flange-mounted): RXF38~RXF158
RXFS Series (1 Stage, Flange-mounted, Solid Shaft Input)
RM Series (agitator gearboxes): Specially designed for agitating applications

Features:

1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)

Parameters:

2 Stage or 3 Stage
Models Output Shaft Dia. Input Shaft Dia. Power(kW) Ratio Max. Torque(Nm)
R/RF18 20mm - 0.18~0.75 3.83~74.84 85
R/RF28 25mm 16mm 0.18~3 3.37~135.09 130
R/RF38 25mm 16mm 0.18~3 3.41~134.82 200
R/RF48 30mm 19mm 0.18~5.5 3.83~176.88 300
R/RF58 35mm 19mm 0.18~7.5 4.39~186.89 450
R/RF68 35mm 19mm 0.18~7.5 4.29~199.81 600
R/RF78 40mm 24mm 0.18~11 5.21~195.24 820
R/RF88 50mm 28mm 0.55~22 5.36~246.54 1550
R/RF98 60mm 38mm 0.55~30 4.49~289.6 3000
R/RF108 70mm 42mm 2.2~45 5.06~245.5 4300
R/RF138 90mm 55mm 5.5~55 5.51~223.34 8000
R/RF148 110mm 55mm 11~90 5.00~163.46 13000
R/RF168 120mm 70mm 11~160 8.77~196.41 18000
1 Stage
Models Output Shaft Dia. Input Shaft Dia. Power(kW) Ratio Max. Torque(Nm)
RX/RXF38 20mm 16mm 0.18~1.1 1.6~3.76 20
RX/RXF58 20mm 19mm 0.18~5.5 1.3~5.5 70
RX/RXF68 25mm 19mm 0.18~7.5 1.4~6.07 135
RX/RXF78 30mm 24mm 1.1~11 1.42~5.63 215
RX/RXF88 40mm 28mm 3~22 1.39~6.44 400
RX/RXF98 50mm 38mm 5.5~30 1.42~5.82 600
RX/RXF108 60mm 42mm 7.5~45 1.44~6.65 830
RX/RXF128 75mm 55mm 7.5~90 1.56~6.47 1110
RX/RXF158 90mm 70mm 11~132 1.63~6.22 1680

Installation:

Foot Mounted
Flange Mounted

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
