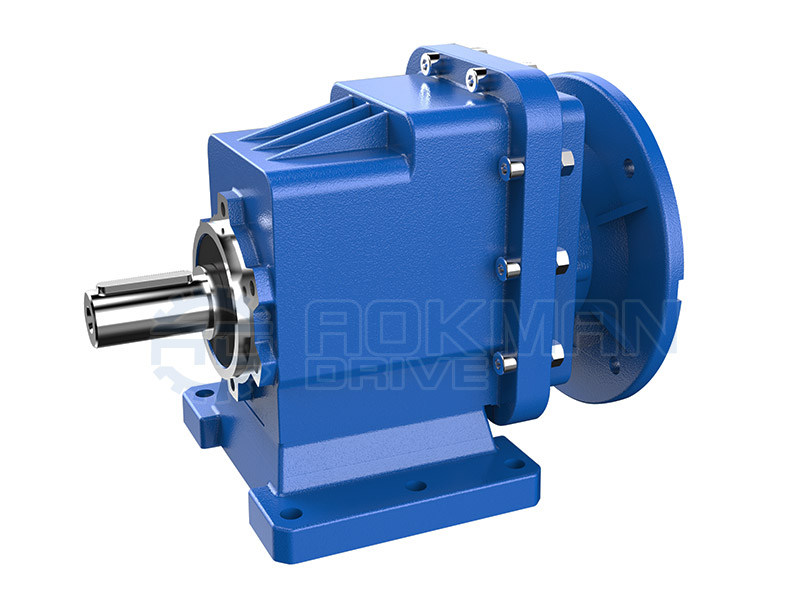

Foot Mounted RC Series Helical Gear Reducers with Input Flange

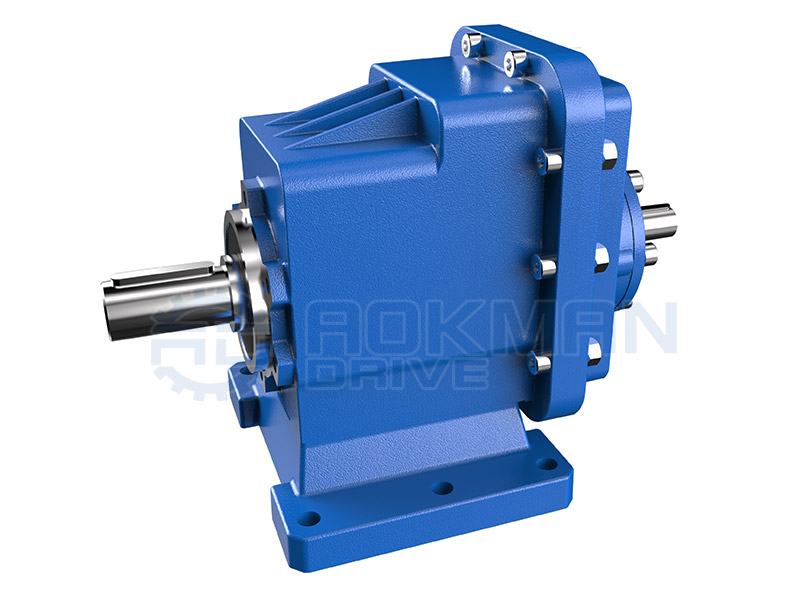

Foot Mounted RC Series Helical Gear Units with Input Shaft

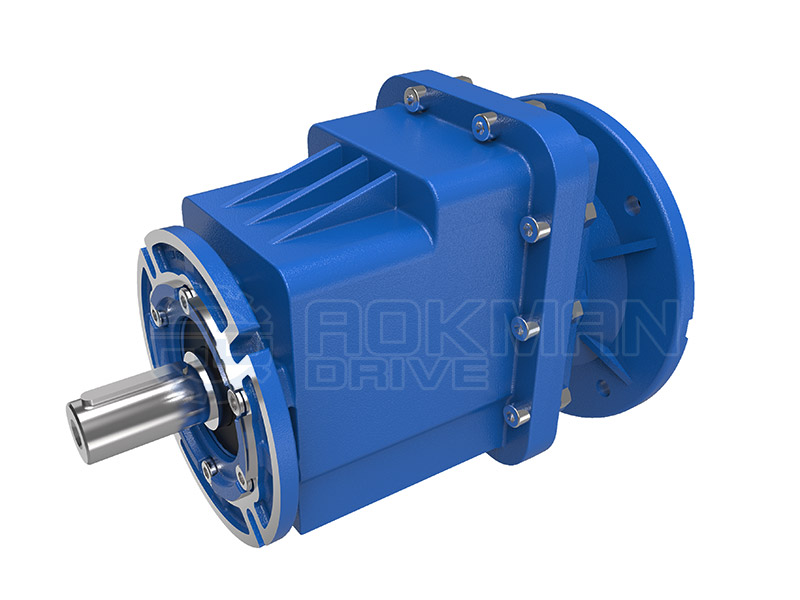

B5 Flange Mounted RCF Series Helical Gear Reducers with Input Motor Flange

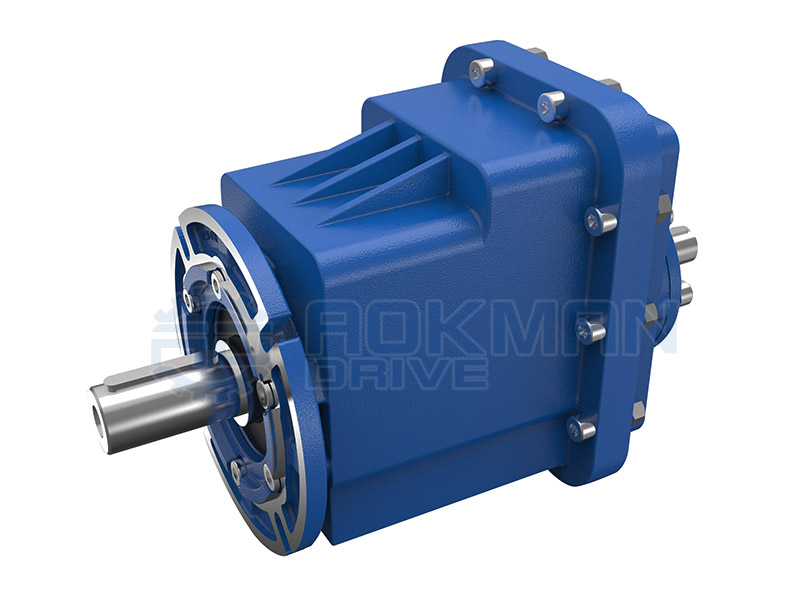

B5 Flange Mounted RCF Series Helical Gear Reducers with Input Shaft

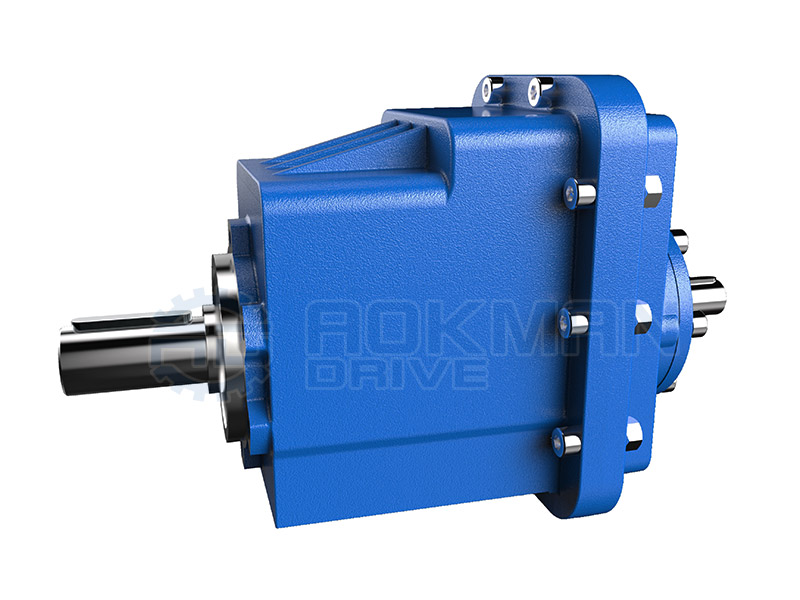

B14 Flange Mounted RCZ Series Helical Gear Reducers with Input Shaft
1 2 3 4 5

RC Series Inline Helical Gear Reducers

  • Input Power: 0.12kW~4kW
  • Ratio: 3.66~54
  • Max. Torque: 120N.m~500N.m
  • Housing: Aluminum Alloys
  • Configurations: Without Motors (Default)
  • Shafts Position: Inline
Share With :

Components:

1. Housing:
Aluminum Alloys
2. Gears:
Hardened Helical Gears
3. Input Configurations:
Hollow Shaft with IEC Normalized Motor Flange
Solid Shaft Input
4. Applicable Motors:
IEC-normalized Motors and Brake Motors
Explosion-proof Motors
Inverter Motors
Servo Motors
5. Output Configurations:
Solid Shaft with B5 Output Flange
Solid Shaft with B14 Output Flange

Models:

RC(Foot-mounted): RC01,RC02,RC03,RC04
RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04
RCZ(B14 Flange-mounted): RCZ01,RCZ02,RCZ03,RCZ04

Features:

1. Modular design, dismountable frame foot, optional different frame sizes and flanges
2. Aluminum housing, compact structures, light weight
3. Carburizing and grinding hardened gears, sturdy and durable
4. Multiple mounting positions
5. Low noise

Parameters:

Frame Sizes Power Ratio Max. Torque
01,02,03,04 0.12kW~4kW 3.66~54 120N.m~500N.m

Applications:

Textile, Food, Ceramics, Packaging, Logistics, Plastics Industry

Installation:

Foot-mounted
B5 Flange-mounted
B14 Flange-mounted

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
