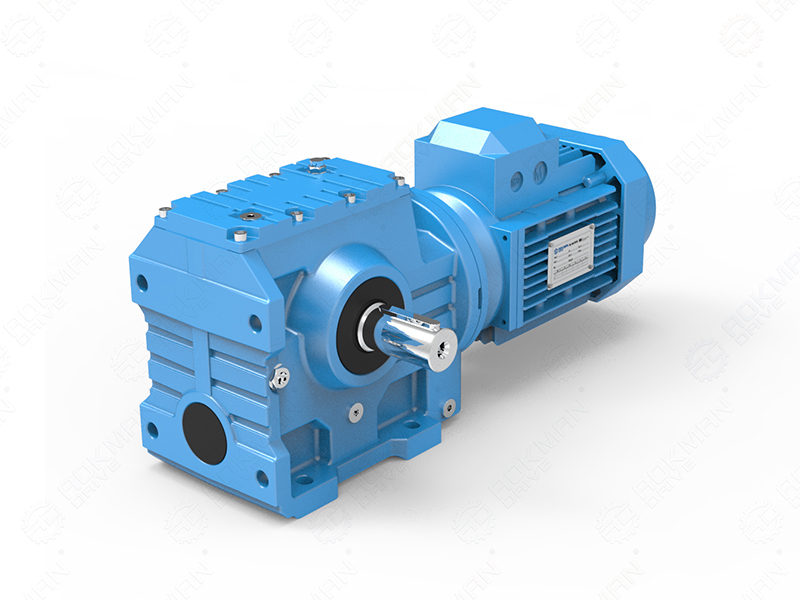

Foot Mounted S Series Helical-worm Gear Motors

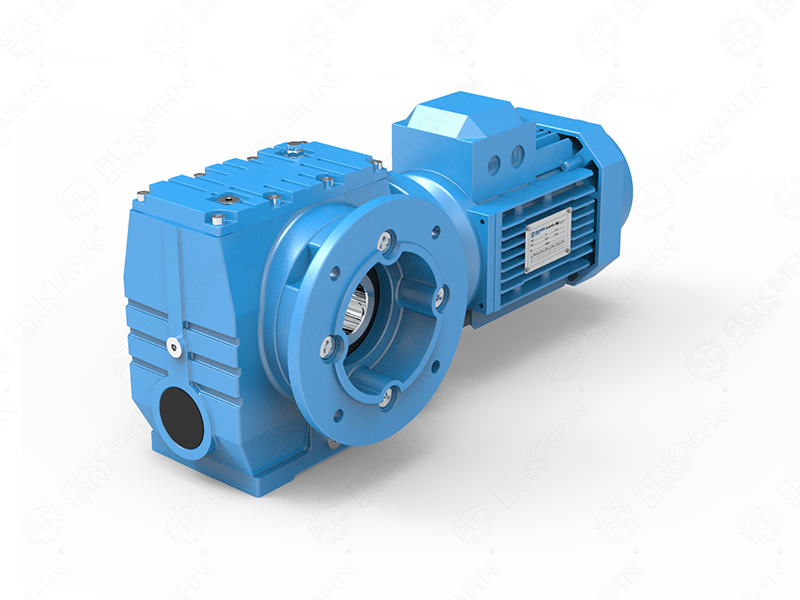

B5 Flange Mounted SAF Series Helical-worm Gear Motors
1 2

S Series Helical-worm Gear Motors

  • Rated Power: 0.18kW~22kW
  • Max. Torque: 90~4000N.m
  • Gear Arrangement: Helical-worm Gears
  • Shafts Position: Right Angle
  • Ratio: 10.27~230.48
  • Installation Form: Foot, Flange, Shaft Mounted
Share With :

Components:

1. Housing: Cast Iron
2. Gears: Helical-worm Gears
3. Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
4. Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
5. Output Configurations:
Solid Shaft Output
Hollow Shaft Output

Models:

S Series - Foot-mounted, solid shaft output
SA Series – Keyed hollow shaft output
SF Series – B5 Flange-mounted, solid shaft output
SAF Series – B5 Flange-mounted, hollow shaft output
SAZ Series – B14 Flange-mounted, hollow shaft output
SAT Series – Hollow shaft output, torque arm
SH, SHF, SHZ Series – Hollow shaft output, shrink disk
S(SA, SF, SAF, SAZ)S Series – Solid shaft input

Features:

1. Modular design, compact structure
2. Low noise
3. Hollow output shaft with keyed connection, shrink disk, or torque arm
4. Can be combined with other types of gearboxes (Such as R Series, UDL Series)

Parameters:

Models Output Shaft Dia. Input Shaft Dia. Power(kW) Ratio Max. Torque(Nm)
Solid Shaft Hollow Shaft
S38 20mm 20mm 16mm 0.18~0.75 10.27~152 90
S48 25mm 25/30mm 16mm 0.18~1.5 11.46~244.74 170
S58 30mm 30/35mm 16mm 0.18~3 10.78~196.21 295
S68 35mm 40/45mm 19mm 0.25~5.5 11.55~22 520
S78 45mm 50/60mm 24mm 0.55~7.5 9.96~241.09 1270
S88 60mm 60/70mm 28mm 0.75~15 11.83~222 2280
S98 70mm 70/90mm 38mm 1.5~22 12.75~230.48 4000

Installation:

Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
