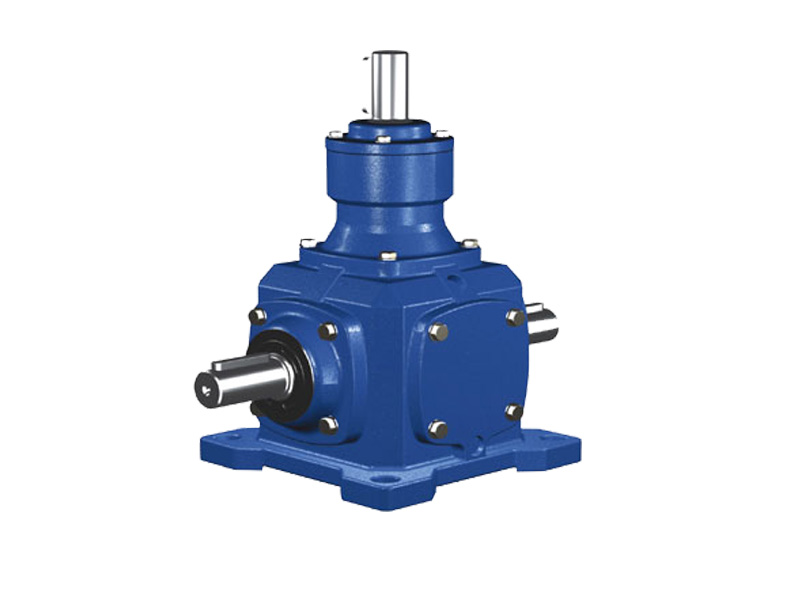

T Series Spiral Bevel Gearbox/Gear Unit

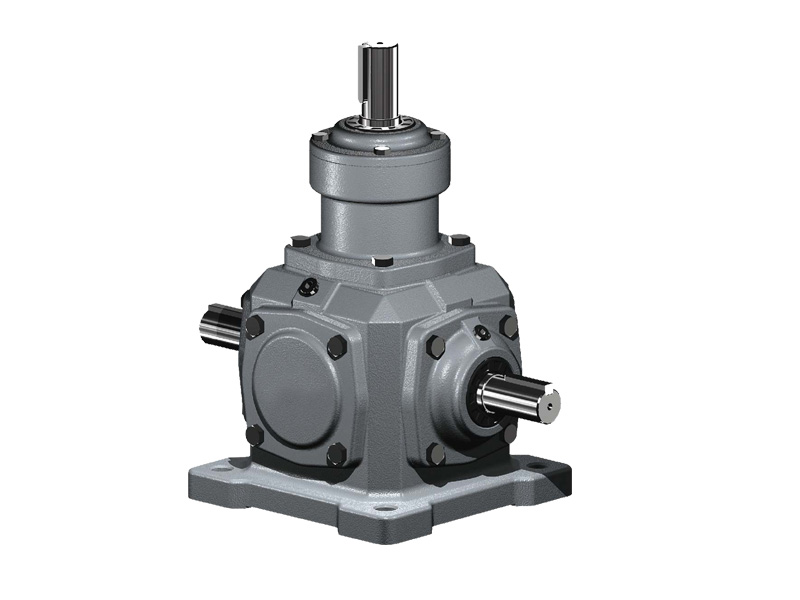

T Series Steering Gearbox
1 2

T Series Spiral Bevel Gearbox/Gear Unit

  • Rated Power: 0.014~335kW
  • Max. Torque: 11~3677N.m
  • Input Speed: 10~1450r/min
  • Ratio: 1~3
  • Output Speed: 3.3~1450r/min
  • Gear Arrangement: Spiral Bevel Gears
  • Shafts Position: Right Angle, Cross
  • Housing: Casting Iron
Share With :

AOKMAN® T series spiral bevel gear units, some aliases are right angle steering gearboxes, cross steering gearboxes.

Components:

1. Housing: Gray Cast Iron
2. Gear Set: Spiral Bevel Gear Pair
3. Input Configurations:
Single Keyed Input Shaft
Double Keyed Input Shafts
4. Output Configurations:
Single Keyed Output Shaft
Double Keyed Output Shafts

Models:

T2~T25

Features:

1. Sturdy cast iron gear box, hardened spiral bevel gears meshed in pairs, and strong bearings all contributing to reliable and optimized performance
2. A wide range of frame sizes, can be configured with different shaft configurations and gear ratio
3. Low noise, light vibration and large load capacity
4. Multiple mounting positions
5. Spiral bevel gears can be bidirectional rotation, smooth operation at low or high speed

Parameters:

Models Input Power Ratio Max. Torque Weight(kg) Output Shaft Dia.(k6)
T2 0.014KW~1.79KW 1~2 11 2 Φ15
T4 0.026KW~4.94KW 1~2 31 10 Φ19
T6 0.037KW~14.9KW 1~3 94 21 Φ25
T7 0.042KW~22KW 1~3 139 32 Φ32
T8 0.064KW~45.6KW 1~3 199 49 Φ40
T10 0.11KW~65.3KW 1~3 288 78 Φ45
T12 0.188KW~96KW 1~3 607 124 Φ50
T16 0.40KW~163KW 1~3 1073 188 Φ60
T20 0.69KW~234KW 1~3 1943 297 Φ72
T25 1.4KW~335KW 1~3 3677 488 Φ85
Ratio: 1:1, 1.5:1, 2:1, 2.5:1, 3:1

Applications:

  • Side By Side Transmission Device
  • Stereo Garage
  • Lifting Device
  • Playground Equipment
  • Packing Machine

Installation:

Foot Mounting
Flange Mounting

Lubrication:

Grease Lubrication
