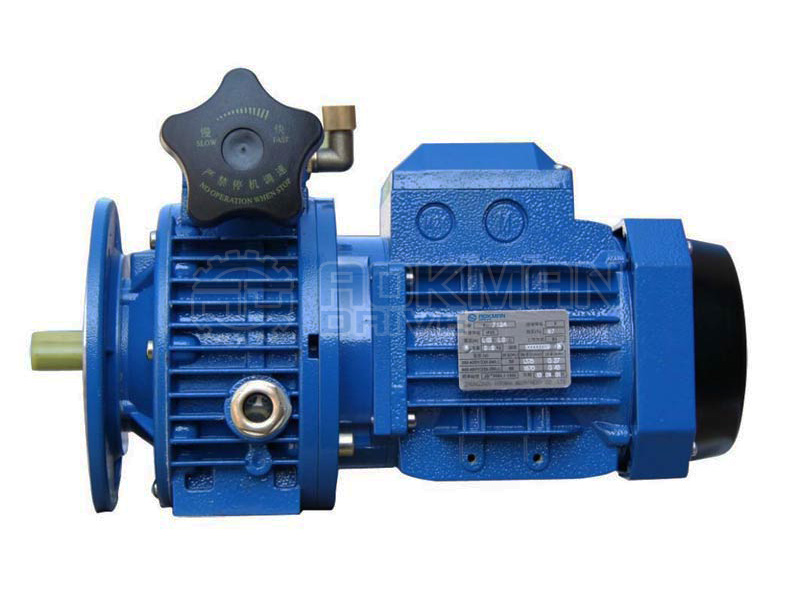

UDL Series Speed Variator with Electric Motor

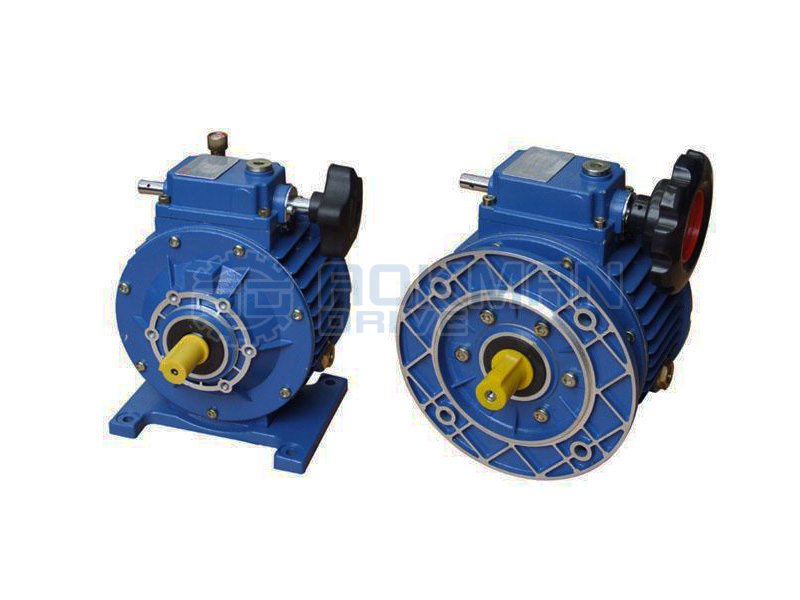

Foot or Flange Mounted UDL Series Speed Variators

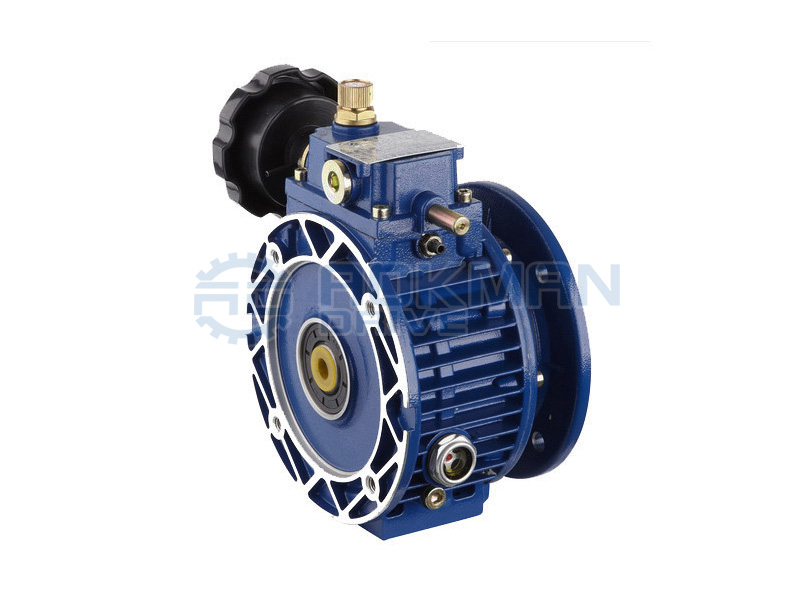

Flange Mounted UDL Series Speed Variators
1 2 3

UDL/UD Series Mechanical Speed Variators

  • Rated Power: 0.18KW~7.5KW
  • Rated Torque: 1.5~118N.m
  • Ratio: 1.4~7.0
  • Installation Form: Foot, Flange Mounted
  • Housing: Aluminium Alloy or Cast Iron
Share With :

Components:

1. Housing: Aluminium Alloy(UDL Series) Cast Iron(UD Series)
2. Input Configurations:
Equipped with Electric Motors
IEC-normalized Motor Flange
3. Output Configurations:
Solid Shaft Output
Solid Shaft Output with Output Flange

Models:

Foot Mounted - UDL002B3~UD050B3
Flange Mounted - UDL002B5~UD050B5

Features:

1. Adjustable speed span can be accurate to 0.5~1 r/min
2. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, RV Series, WB Series cycloid reducers)
3. Compact structure
4. Clockwise and counterclockwise rotation

Parameters:

Models Power Ratio Output Speed(n2)* Output Torque Output Shaft Dia. Output Flange Dia.
UDL002 0.18KW 1.6~8.2 800~170r/min 1.5~3N.m Φ11 Φ140
UDL005 0.25KW 1.4~7 1000~200r/min 2.2~6N.m Φ14 Φ160
UDL005 0.37KW 1.4~7 1000~200r/min 3~6N.m Φ14 Φ160
UDL010 0.55KW 1.4~7 1000~200r/min 4~8N.m Φ19 Φ200
UDL010 0.75KW 1.4~7 1000~200r/min 6~12N.m Φ19 Φ200
UD020 1.1KW 1.4~7 1000~200r/min 9~18N.m Φ24 Φ200
UD020 1.5KW 1.4~7 1000~200r/min 12~24N.m Φ24 Φ200
UD030 2.2KW 1.4~7 1000~200r/min 18~36N.m Φ28 Φ250
UD030 3.0KW 1.4~7 1000~200r/min 24~48N.m Φ28 Φ250
UD030 4.0KW 1.4~7 1000~200r/min 32~64N.m Φ28 Φ250
UD050 5.5KW 1.4~7 1000~200r/min 45~90N.m Φ38 Φ300
UD050 7.5KW 1.4~7 1000~200r/min 59~118N.m Φ38 Φ300
* Input Speed n1=1400r/min

Installation:

B3 Foot-mounted
B5 Flange-mounted
