WB Series Micro Cycloidal Reducers

  • Rated Power: 0.04~3KW
  • Max. Torque: 25~250N.m
  • Gear Arrangement: Cycloid & Pin Wheel
  • Shafts Position: Coaxial / Inline
  • Ratio: 9~1849
  • Installation Form: Foot, Flange Mounted
Share With :

Components:

1. Housing: Aluminum Alloy
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:

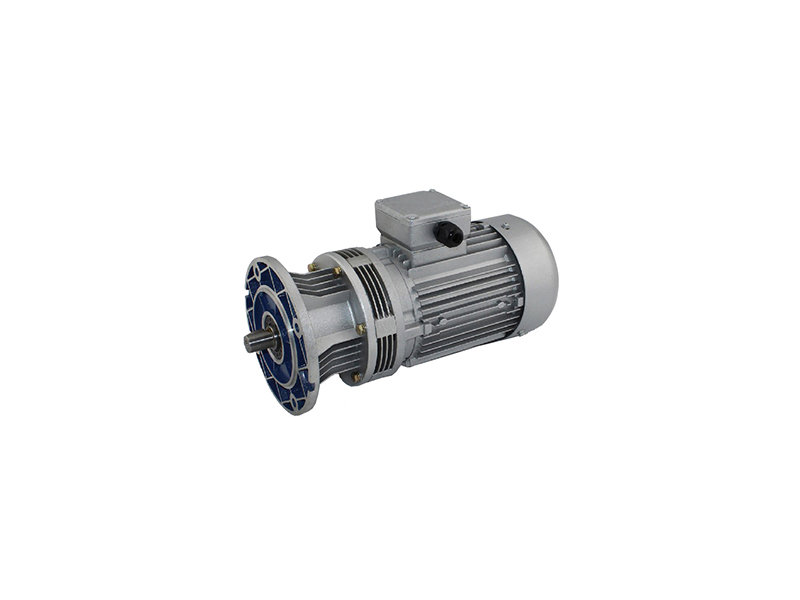

Equipped with Electric Motors (3 Phase AC Motor, Single Phase AC Motor, Brake Motor, Servo Motor)
IEC-normalized Motor Flange
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output

Features:

1. WB series cycloidal reducers have the same features and characteristics with X & B series cycloidal reducers. The differences are WB series cycloidal reducers have smaller sizes and power
2. Grease lubrication, oil leak is not possible
3. Multiple mounting options

Parameters:

Models Power Ratio Max. Torque Output Shaft Dia. Input Shaft Dia.
1 Stage
WB65 0.04~0.12 9~87 25 Φ12 Φ10
WB85 0.09~0.37 9~87 60 Φ14 Φ12
WB100 0.18~0.75 9~87 120 Φ18 Φ14
WB120 0.37~1.5 9~87 180 Φ30 Φ15
WB150 0.55~3.0 9~87 250 Φ35 Φ20
2 Stage
WBE1065 0.04~0.12 121~1849 120 Φ18 Φ10
WBE1285 0.09~0.37 121~1849 180 Φ30 Φ12
WBE1510 0.18~0.75 121~1849 250 Φ35 Φ14
1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849

Installation:

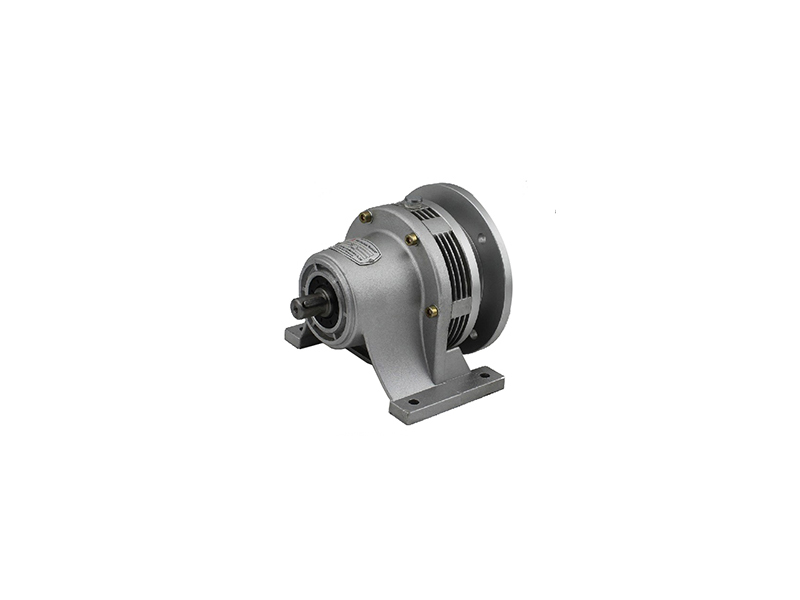

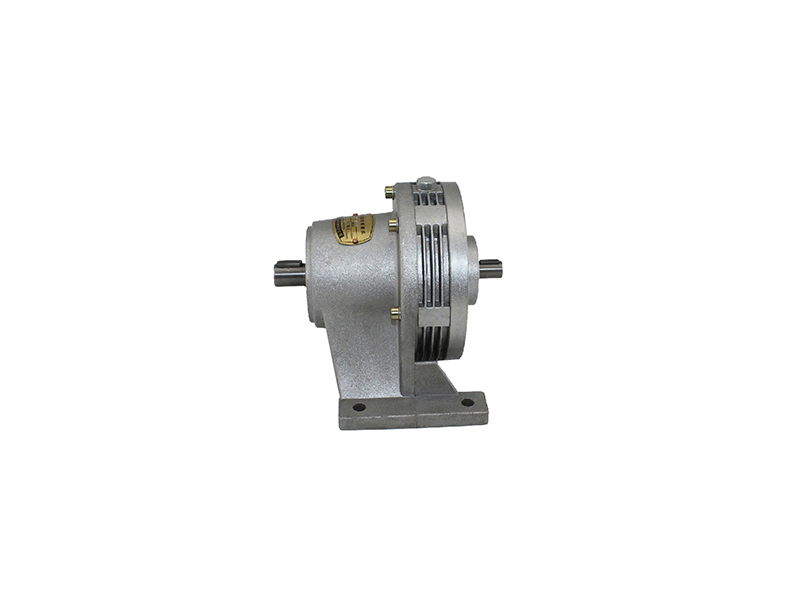

Foot Mounted

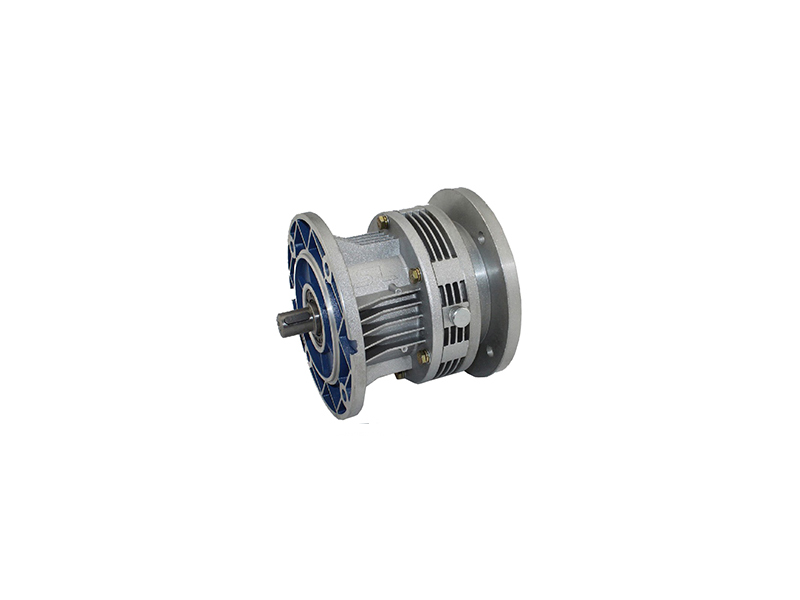

Flange Mounted

Lubrication:

Grease Lubrication

Cooling:

Natural Cooling
