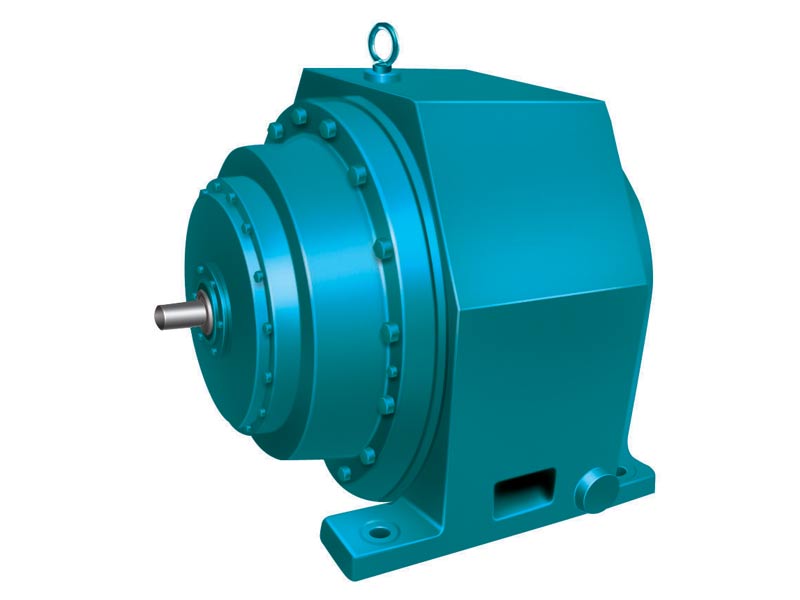

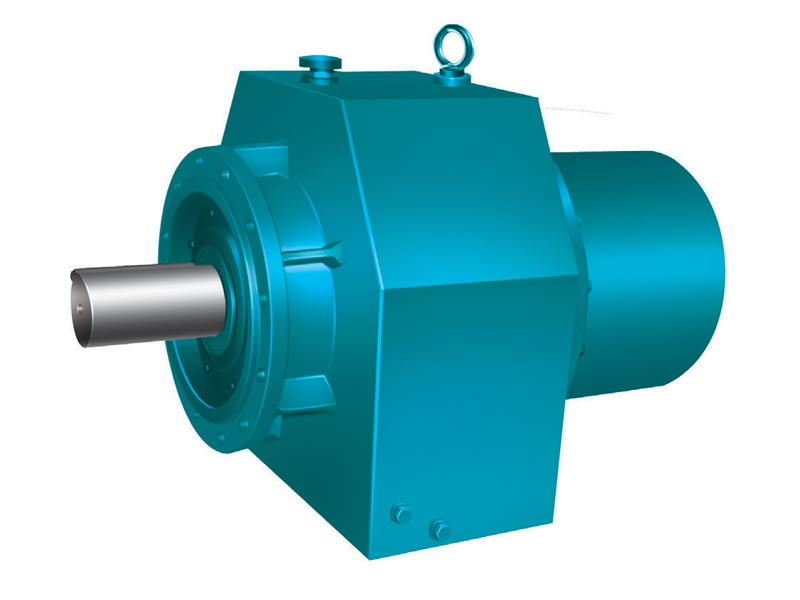

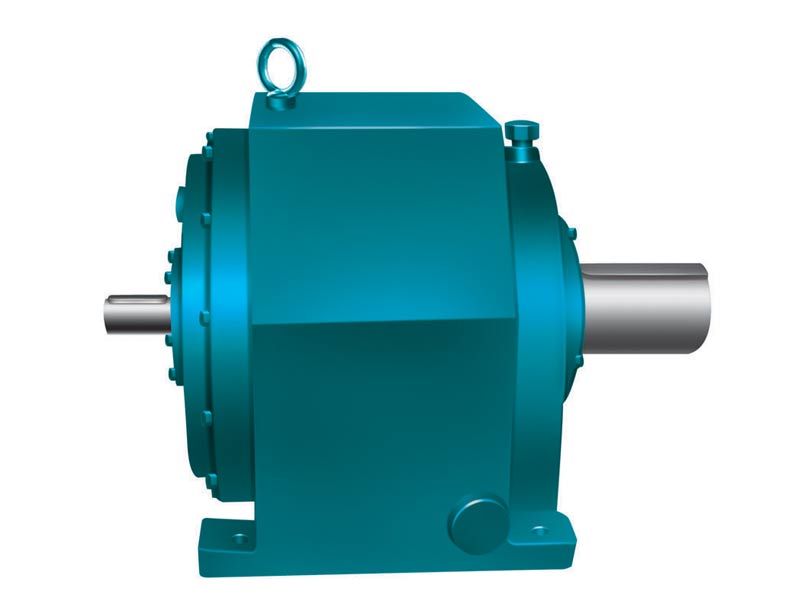

Star Wheel Drive Gearbox
Star Wheel Drive Gearbox
Star Wheel Drive Gearbox
1 2 3

H Series Planetary Gear Units

  • Gear Arrangement: Involute Planetary Gears
  • Ratio: 18~5000
  • Stage: 1,2 Stage
  • Efficiency: ≥90%
  • Shafts Position: In Line
  • Housing: Cast Iron
  • Mounted: Foot,Flange Mounting
Share With :

Components:

1. Housing: Cast Iron
2. Gearset: Planetary Gears Set
3. Input Configurations:
Integrated with Electric Motors (50Hz & 60Hz 3 Phrase AC Motors - 4P,6P,8P, DC Motors, Explosion-proof Motors, Hydraulic Motors)
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Cylindrical Solid Shaft Output
Keyed Hollow Shaft Output
Splined Hollow Shaft Output

Models:

  • HJ – 1 Stage Star Wheel Gearset (Small Teeth Difference Involute Planetary Gear Set)
  • HN – 1 Stage Star Wheel Gearset Integrated with 1 Stage Planetary Gear Set
  • HH – 2 Stage Star Wheel Gearset

Features:

1. AOKMAN® H series planetary gear units(star wheel gearboxes) is a new design internal meshing small teeth number difference involute planetary gear transmission mechanism. H series is very ideal for high load and continuous duty
2. Compact structure, high load capacity
3. High efficiency
4. Smooth operation, low noise
5. Large ratio range, intensive gear ratio
6. Modular design, easy to maintain

Parameters:

Types Sizes Nominal Ratio Efficiency
HJ 18B,20B,…71B,80B
19B,21B,…67B,75B
18~80 ≥95%
HN 18B,20B,…71B,80B
19B,21B,…67B,75B
75~600 ≥94%
HH 18B,20B,…71B,80B
19B,21B,…67B,75B
450~5,000 ≥90%
Frame Sizes:
18B,20B,22B,25B,28B,31B,35B,40B,45B,50B,56B,63B,71B,80B
19B,21B,23B,26B,30B,33B,37B,42B,47B,53B,60B,67B,75B

Installation:

Horizontal Mounting
Vertical Mounting
Circular Disc Base Mounting

Lubrication:

Oil Immersion and Splash Lubrication
Forced Lubrication

Cooling:

Natural Cooling
Auxiliary Cooling Devices
