GH Series Coaxial Geared Motors
GV Series Coaxial Geared Motors
1 2

GH/GV Series Coaxial Geared Motors

  • Input Power: 0.1KW-3.7KW
  • Gear Ratio: 3-1800
  • Shaft Arrangement: Coaxial / Inline
  • Gear Arrangement: Helical Gears
  • Stage: 2, 3
  • Mounting: Foot mounted, Flange mounted
Share With :

Components:

1. Housing:
Frame Size 18-28, Aluminum alloy ADC12
Frame Size 32-50, Cast iron HT200
2. Gears: Helical Gears, 2 or 3 stage
3. Input Configurations:
GH/GV Series - Compact Motor, 1 Phase / 3 Phase, Optional Brake
GHM/GVM Series - IEC Flange
GHD/GVD Series - Solid Shaft Input
4. Output Configurations:
Solid Shaft Output

Features:

1. Compact structure
2. Wide range of gear ratio, ratio 250-1800 available by 2 frame sizes combination
3. Different input options available, flexible mounting ways and positions
4. 3 phase or 1 phase motor available, optional brake, aluminum alloy, TEFC IP54. IP55 aluminum alloy terminal box, dustproof and waterproof

Models & Parameters:

Models Output Shaft Dia. Power(kW) Ratio
GH18 GV18 18 0.1KW, 0.2KW, 0.4KW, 0.75KW, 1.5KW, 2.2KW, 3.7KW
1/8HP, 1/4HP, 1/2HP, 1HP, 2HP, 3HP, 5HP
3-200
250-1800
GH22 GV22 22
GH28 GV28 28
GH32 GV32 32
GH40 GV40 40
GH50 GV50 50

Installation:

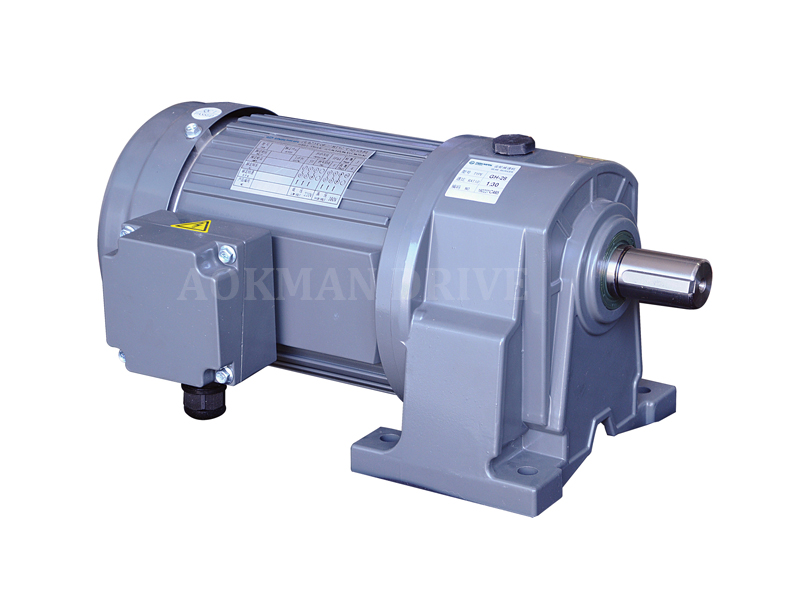

GH Series - Foot Mounted

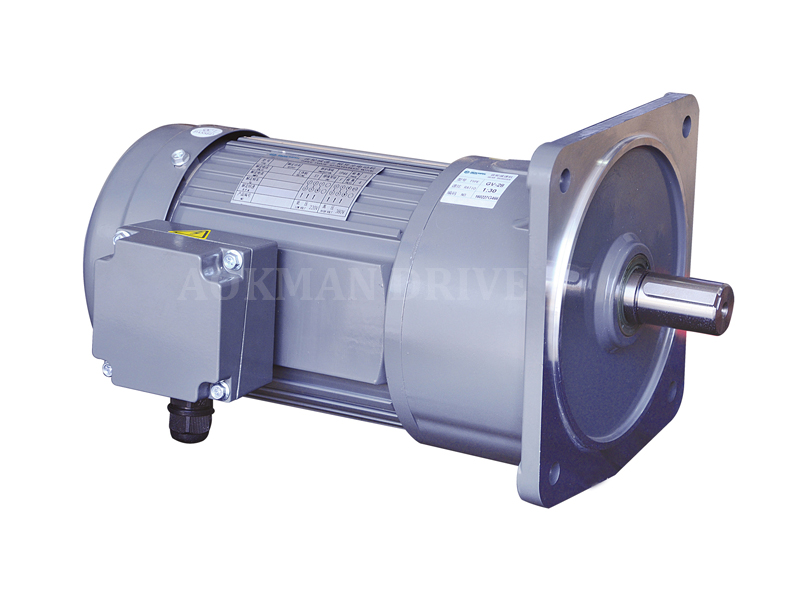

GV Series - Flange Mounted
