YEJ Series Brake Motors
YEJ Series Brake Induction Motors
1 2

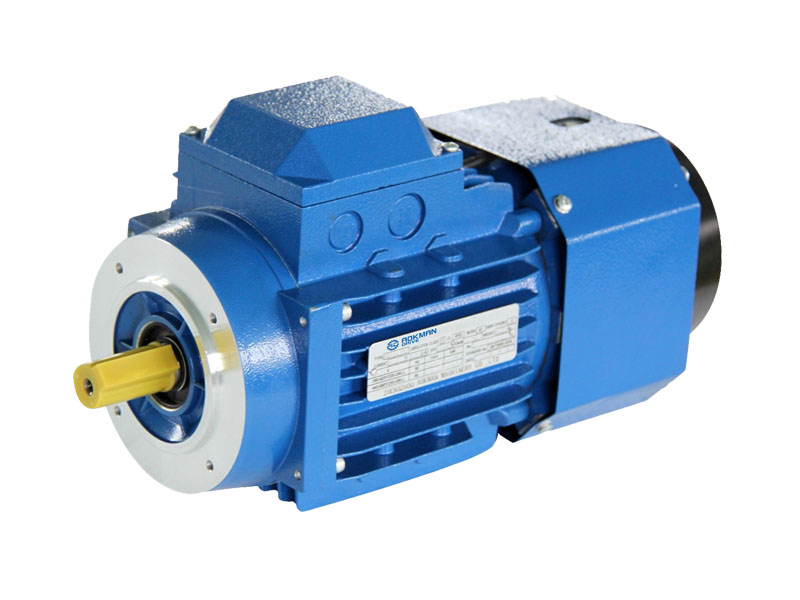

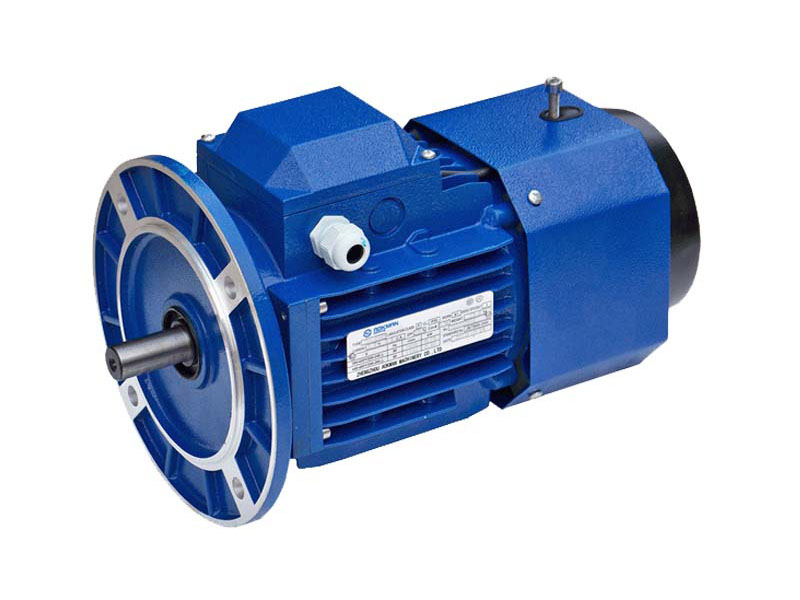

YEJ Series Electromagnetic Brake Induction Motors

  • Power: 0.12 kW~22 kW
  • Poles: 2P, 4P, 6P
  • Frequency: 50Hz/60Hz
  • Protection Class: IP54, IP55, IP56
  • Insulation Class: F
  • Bearing: C&U, NSK, SKF
  • Brake: Electromagnetic Brakes
Share With :

AOKMAN® YEJ series electromagnetic brake 3 phase asynchronous motors (induction motors) adopts IEC standards, ABB Motor square design, cast aluminum housing, detachable mounting feet. Dustproof and waterproof, low noise, low vibration, energy saving, long service life.

Components:

1. Housing: Die-casting Aluminum
2. Shaft: 40Cr
3. Magnet Wires: QZ-2/155, QZ-2/180
4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600
5. Bearings: C&U, NSK, SKF

Models & Parameters:

  • Voltage: 380V
  • Frequency: 50Hz/60Hz
  • Power: 0.12 kW~22 kW (0.16HP~30HP)
  • Poles: 2P, 4P, 6P
  • Output Speed: 3000RPM, 1500RPM, 1000RPM
  • Frame Sizes: H63~H180
  • Shaft Diameter: Φ11~Φ48
  • Ingress Protection: IP54, IP55, IP56
  • Insulation Level: F
  • Duty: Continuous duty (S1)
  • Cooling: IC411
  • Brake: 96V DC Supply Electromagnetic Brakes

Mounting Options:

  • IM B3
  • IM B5, IM B14
  • IM B34, IM B35
