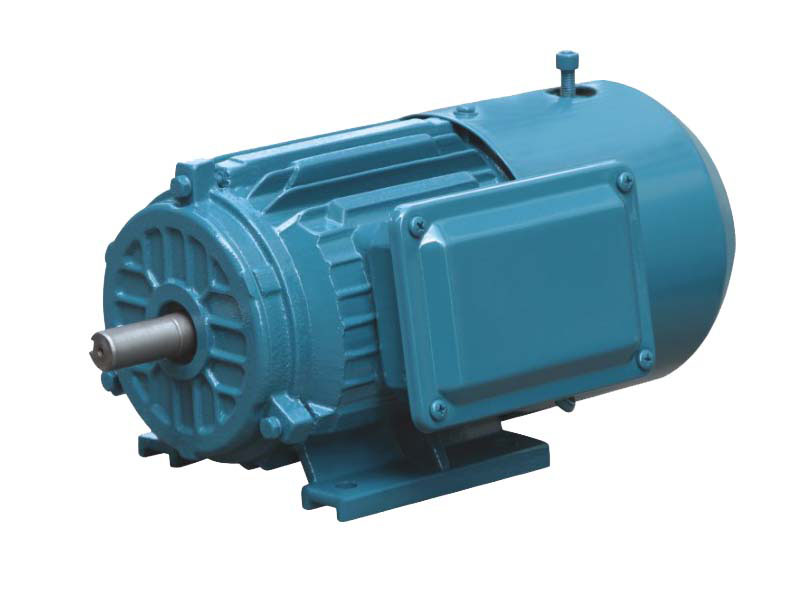

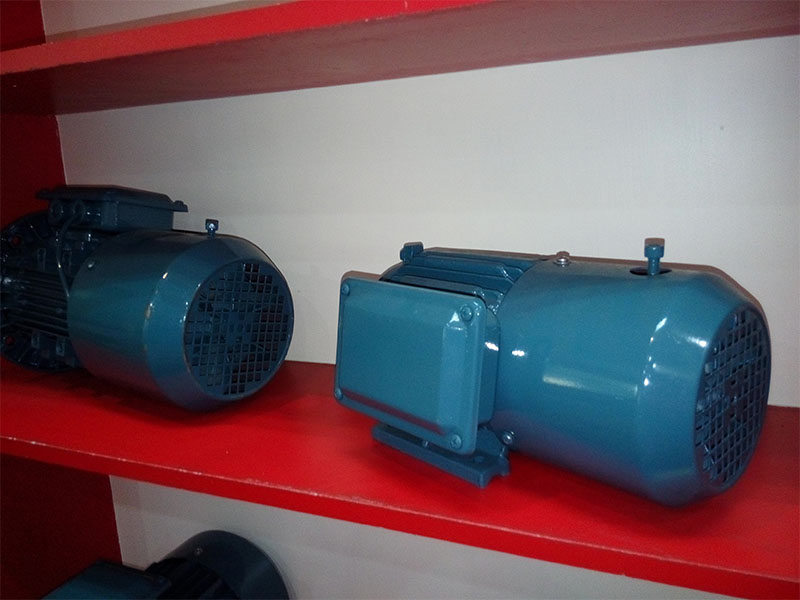

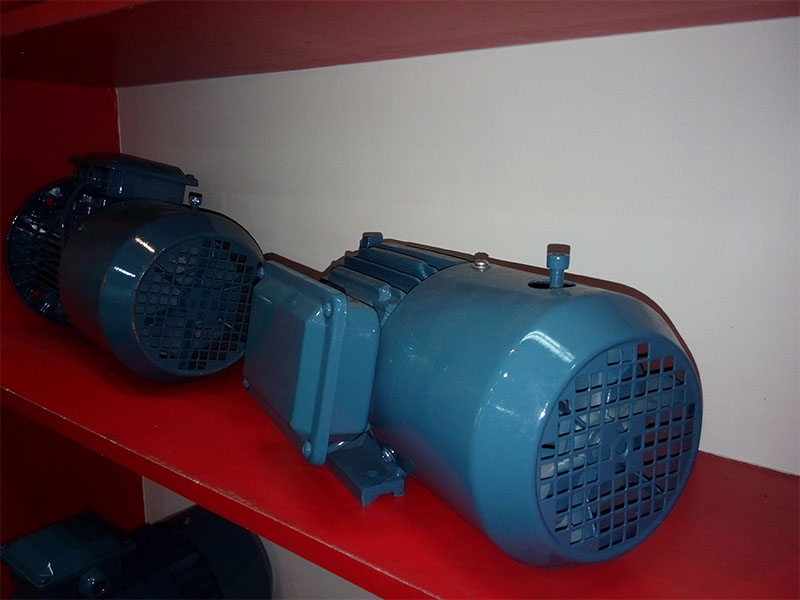

Y2 Series Cast Iron AC Induction Motors (With Brakes)
Casting Iron AC Motor With Brake
Y2 Series Cast Iron AC Induction Motors With Brakes
1 2 3

Y2 Series Cast Iron AC Induction Motors

  • Power: 0.12 kW~200 kW
  • Poles: 2P,4P,6P,8P
  • Frequency: 50Hz/60Hz
  • Protection Class: IP54, IP55, IP56
  • Insulation Class: F
  • Bearing: C&U, NSK, SKF
Share With :

AOKMAN® Y2 series cast iron 3 phase asynchronous motors (induction motors) adopts IEC standards, casting iron housing. Dustproof and waterproof, low noise, low vibration, energy saving, long service life.

Components:

1. Housing: Cast Iron
2. Shaft: 40Cr
3. Magnet Wires: QZ-2/155, QZ-2/180
4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600
5. Bearings: C&U, NSK, SKF

Models & Parameters:

  • Voltage: 380V
  • Frequency: 50Hz/60Hz
  • Power: 0.12 kW~200 kW (0.16HP~272HP)
  • Poles: 2P, 4P, 6P, 8P
  • Output Speed: 3000RPM, 1500RPM, 1000RPM, 750RPM
  • Frame Sizes: H63~H315
  • Shaft Diameter: Φ11~Φ80
  • Ingress Protection: IP54, IP55, IP56
  • Insulation Level: F
  • Duty: Continuous duty (S1)
  • Cooling: IC411
  • Brake: Optional Brakes

Mounting Options:

  • IM B3
  • IM B5, IM B14
  • IM B34, IM B35
