YE2 Series High Efficiency AC Induction Motors
YE2 Series High Efficiency IE2 AC Motors
YE2 Series High Efficiency IE2 AC Induction Motors
1 2 3

YE2 Series High Efficiency IE2 AC Motors

  • Power: 0.75 kW~22 kW
  • Poles: 2P, 4P, 6P
  • Frequency: 50Hz/60Hz
  • Protection Class: IP54, IP55, IP56
  • Insulation Class: F
  • Bearing: C&U, NSK, SKF
  • Efficiency Class: IE2
Share With :

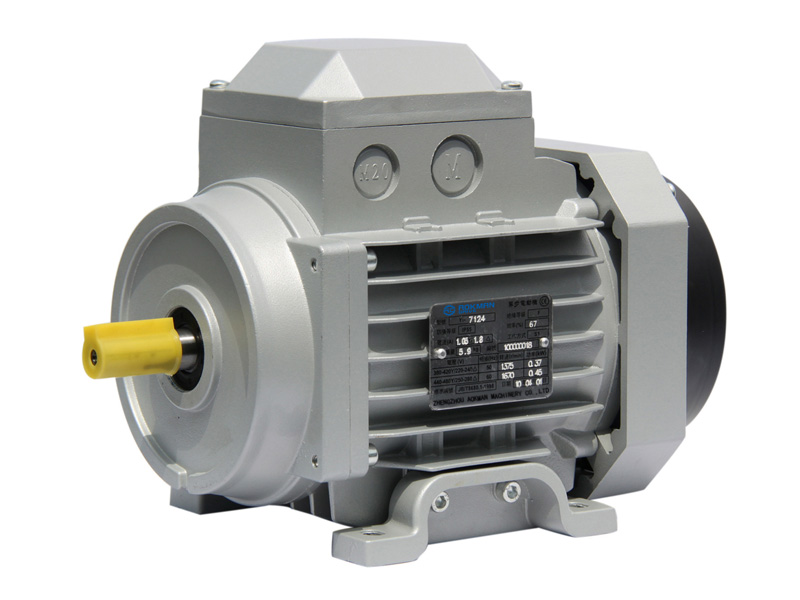

AOKMAN® YE2 series 3 phase AC asynchronous motors (induction motors) adopts IEC standards, IE2 energy efficiency, ABB Motor square design, cast aluminum housing, detachable mounting feet. Dustproof and waterproof, low noise, low vibration, energy saving, long service life.

Components:

1. Housing: Die-casting Aluminum
2. Shaft: 40Cr
3. Magnet Wires: QZ-2/155, QZ-2/180
4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600
5. Bearings: C&U, NSK, SKF

Models & Parameters:

  • Voltage: 380V
  • Frequency: 50Hz/60Hz
  • Power: 0.75 kW~22 kW (1HP~30HP)
  • Poles: 2P, 4P, 6P
  • Output Speed: 3000RPM, 1500RPM, 1000RPM
  • Frame Sizes: H80~H180
  • Shaft Diameter: Φ19~Φ48
  • Efficiency Class: IE2
  • Ingress Protection: IP54, IP55, IP56
  • Insulation Level: F
  • Duty: Continuous duty (S1)
  • Cooling: IC411

Mounting Options:

  • IM B3
  • IM B5, IM B14
  • IM B34, IM B35
