Components:
1. Housing: Cast Iron
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)
IEC-normalized Motor Flange
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output
Features:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise
5. Long service life
Parameters:
| Models |
Power |
Ratio |
Max. Torque |
Output Shaft Dia. |
Input Shaft Dia. |
| 1 Stage |
| X2(B0/B12/JXJ0) |
0.37~1.5 |
9~87 |
150 |
Φ25(Φ30) |
Φ15 |
| X3(B1/B15/JXJ1) |
0.55~2.2 |
9~87 |
250 |
Φ35 |
Φ18 |
| X4(B2/B18/JXJ2) |
0.75~4.0 |
9~87 |
500 |
Φ45 |
Φ22 |
| X5(B3/B22/JXJ3) |
1.5~7.5 |
9~87 |
1,000 |
Φ55 |
Φ30 |
| X6(B4/B27/JXJ4) |
2.2~11 |
9~87 |
2,000 |
Φ65(Φ70) |
Φ35 |
| X7 |
3.0~11 |
9~87 |
2,700 |
Φ80 |
Φ40 |
| X8(B5/B33/JXJ5) |
5.5~18.5 |
9~87 |
4,500 |
Φ90 |
Φ45 |
| X9(B6/B39/JXJ6) |
7.5~30 |
9~87 |
7,100 |
Φ100 |
Φ50 |
| X10(B7/B45/JXJ7) |
15~45 |
9~87 |
12,000 |
Φ110 |
Φ55 |
| X11(B8/B55/JXJ8) |
18.5~55 |
9~87 |
20,000 |
Φ130 |
Φ70 |
| 2 Stage |
| X32(B10) |
0.25~0.55 |
121~1849 |
- |
Φ35 |
Φ15 |
| X42(B20/B1812/JXJE20) |
0.37~0.75 |
121~1849 |
- |
Φ45 |
Φ15 |
| X53(B31/B2215/JXJE31) |
0.55~1.5 |
121~1849 |
- |
Φ55 |
Φ18 |
| X63(B41/B2715/JXJE41) |
0.75~2.2 |
121~1849 |
- |
Φ65(Φ70) |
Φ18 |
| X64(B42/B2718/JXJE42) |
0.75~2.2 |
121~1849 |
- |
Φ65(Φ70) |
Φ22 |
| X74 |
1.1~3.0 |
121~1849 |
- |
Φ80 |
Φ22 |
| X84(B52/B3318/JXJE52) |
1.5~4.0 |
121~1849 |
- |
Φ90 |
Φ22 |
| X85(B53/B3322/JXJE53) |
2.2~5.5 |
121~1849 |
- |
Φ90 |
Φ30 |
| X95(B63/B3922/JXJE63) |
3.0~7.5 |
121~1849 |
- |
Φ100 |
Φ30 |
| X106(B74/B4527/JXJE74) |
4.0~11 |
121~1849 |
- |
Φ110 |
Φ35 |
| X117(B84/B5527/JXJE85) |
4.0~15 |
121~1849 |
- |
Φ130 |
Φ40(Φ35) |
1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
Installation:

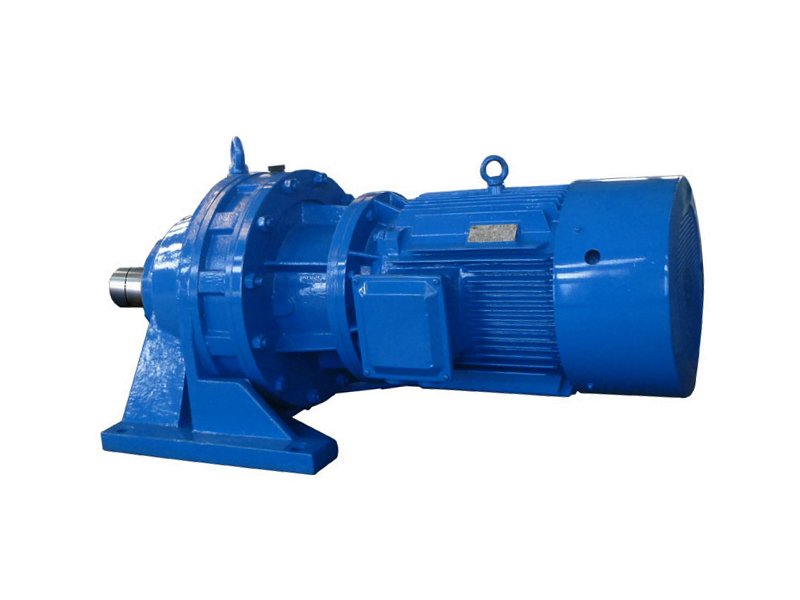

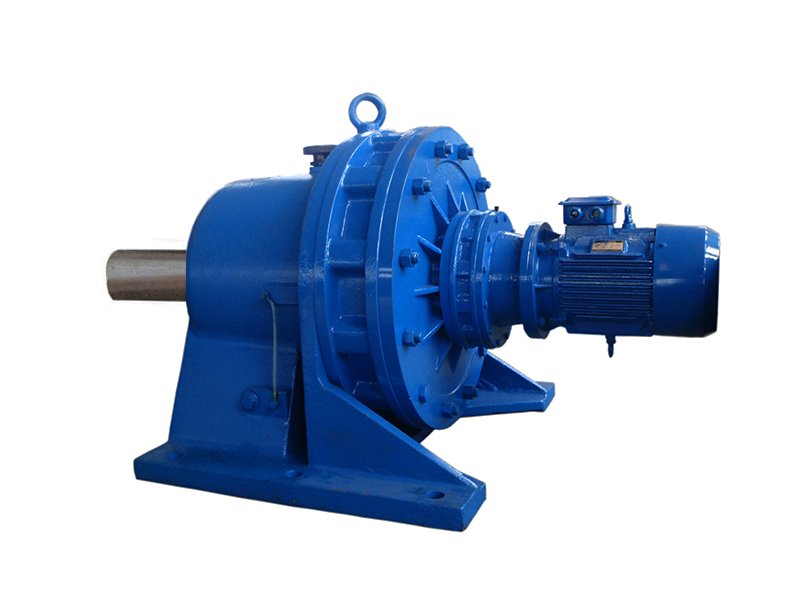

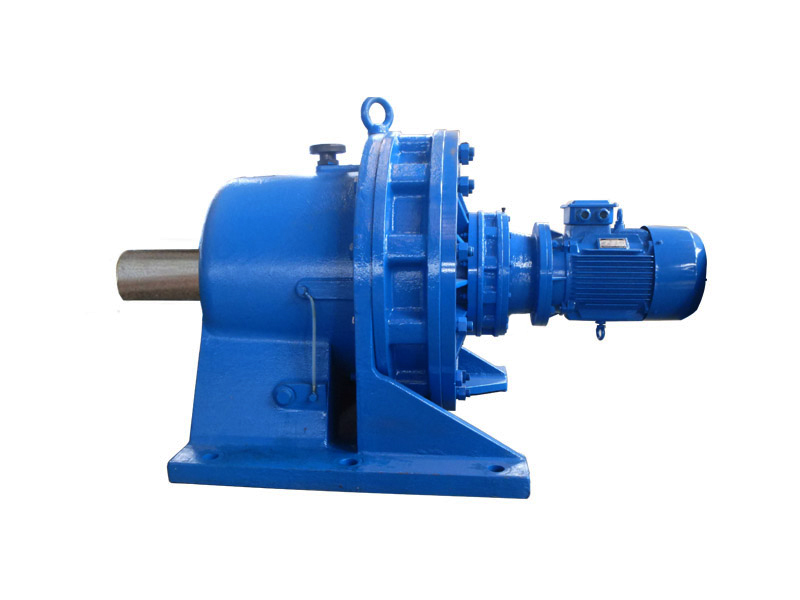

Foot Mounted

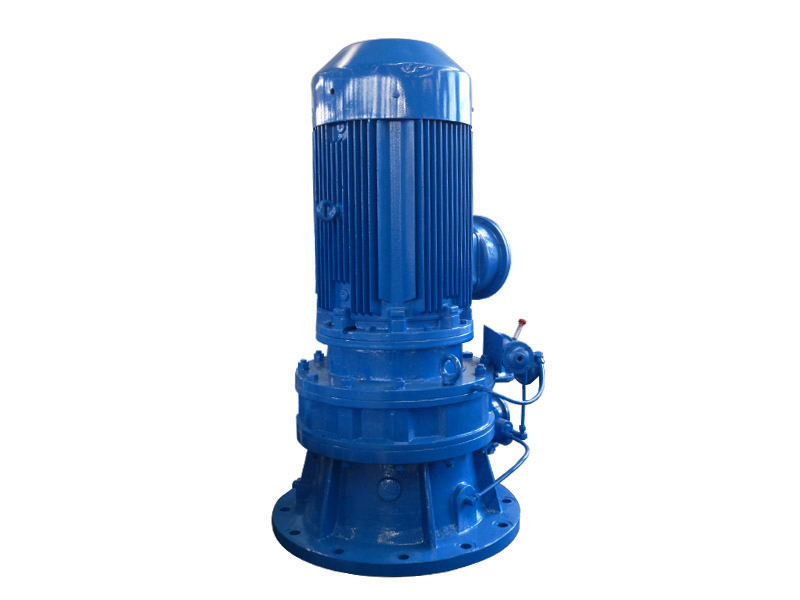

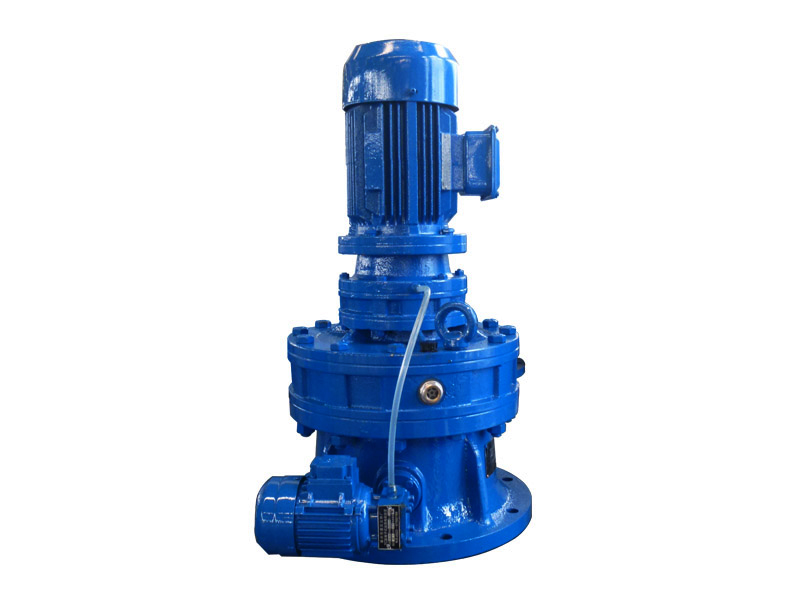

Flange Mounted
Lubrication:
| - |
Foot-mounted |
Flange-mounted |
| 1 Stage |
X2~X4 |
X5~X11 |
X2~X4 |
X5~X11 |
| Grease Lubrication |
Oil-bath & Splash Lubrication |
Grease Lubrication |
Oil Pump Circulation Lubrication |
| 2 Stage |
X32~X42 |
X53~X117 |
X32~X42 |
X53~X117 |
| Grease Lubrication |
Oil-bath & Splash Lubrication |
Grease Lubrication |
Oil Pump Circulation Lubrication |
Cooling:
Natural Cooling
