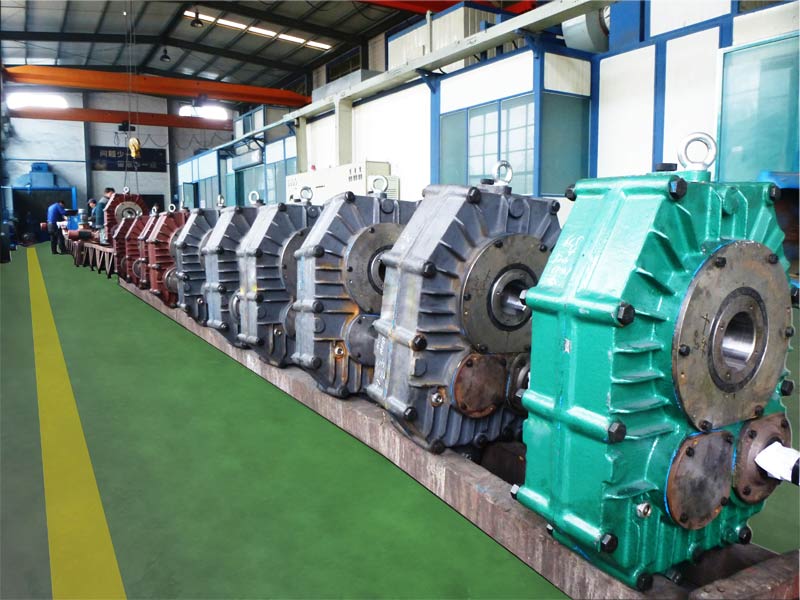

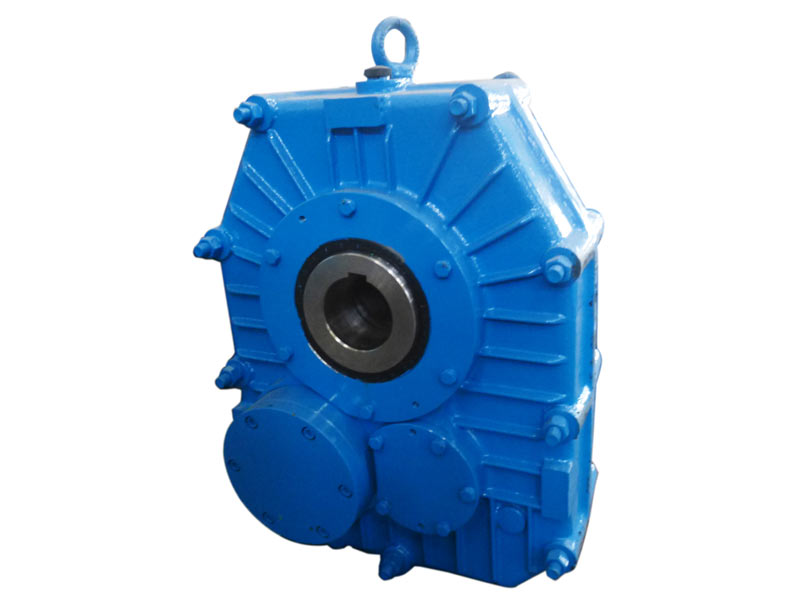

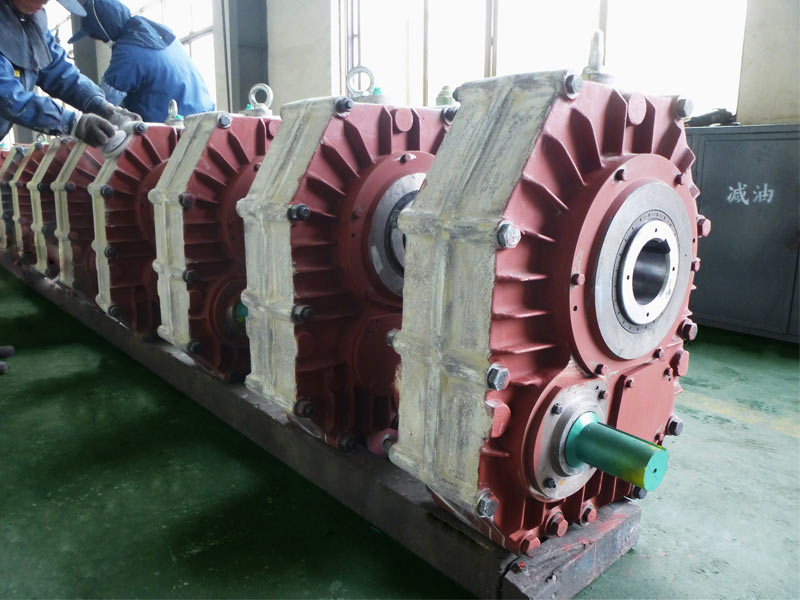

ZJY Series Shaft Mounted Gearbox Reducer
ZJY Series Shaft Mounted Gearbox
ZJY Series Shaft Mounted Reducers
1 2 3

ZJY Series Shaft Mounted Gearbox Reducer

  • Rated Power: 2.3kW~225kW
  • Rated Torque: 750~14720N.m
  • Gear Profile: Hardened Helical Gears
  • Input Speed: 1500, 1000, 750r/min
  • Output Speed: 30~150r/min
  • Ratio: 10~25
  • Installation Form: Hanging Shaft Mounted
  • Backstop: Optional
Share With :

Components:

1. Housing: Cast Iron Gearbox
2. Gears: Hardened Helical Gears, Carburizing, Quenching, Grinding
3. Gears Accuracy: 6 Class
4. Shafts: High Quality Alloy Steel
5. Input Configurations:
Keyed Solid Shaft Input
6. Output Configurations:
Keyed Hollow Shaft Output
7. Spare Parts: Torque arm, Backstop

Models:

ZJY106, ZJY125, ZJY150, ZJY180, ZJY212, ZJY250, ZJY300

Features:

1. High strength of gear box, gears and shafts, sturdy and durable
2. Bi-directional rotation(Clockwise or Counterclockwise) is available for output shaft. Unidirectional rotation if equipped with the backstop to prevent backdriving
3. Widely used in conveyors

Parameters:

Models Output Shaft Bore Input Power Max. Torque Ratio Weight
ZJY106 45mm 2.3kW~12kW 750N.m 10, 11.2, 12.5, 14, 16, 18, 20, 22.4, 25 27kg
ZJY125 55mm 3.8kW~19kW 1250N.m 40kg
ZJY150 60mm 7.1kW~33kW 2120N.m 67kg
ZJY180 70mm 11kW~56kW 3550N.m 110kg
ZJY212 85mm 19kW~92kW 6000N.m 173kg
ZJY250 100mm 32kW~157kW 10000N.m 250kg
ZJY300 120mm 46kW~225kW 14720N.m 380kg

Applications:

Belt Conveyors, Scraper Conveyors, Bucket Elevators

Installation:

Hanging Shaft Mounted
Equipped With Pulley

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
