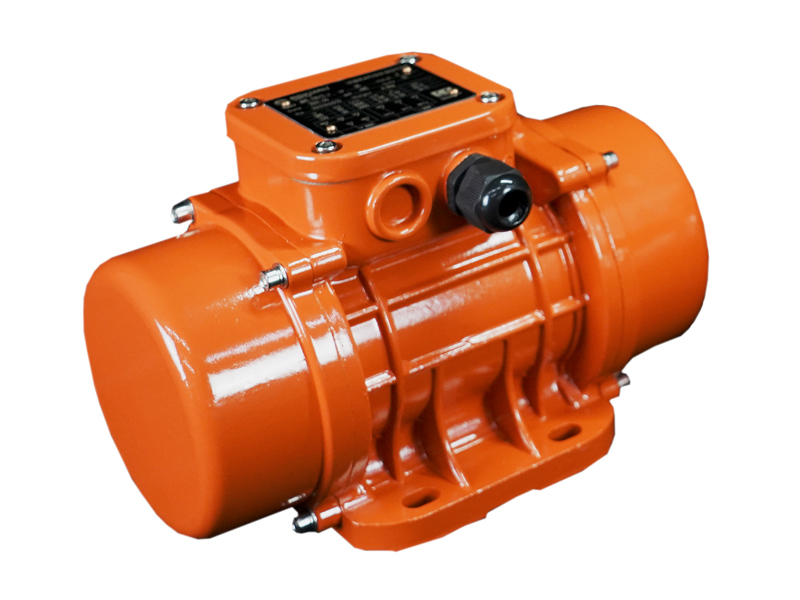

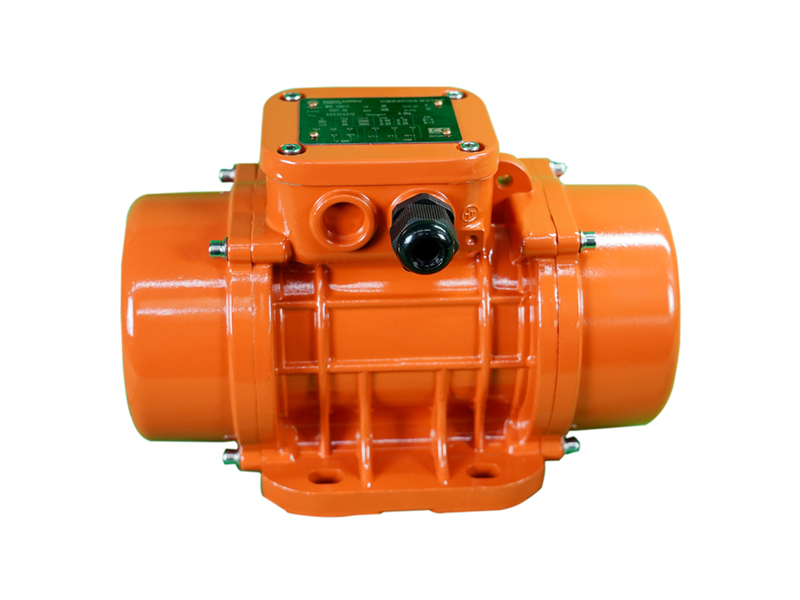

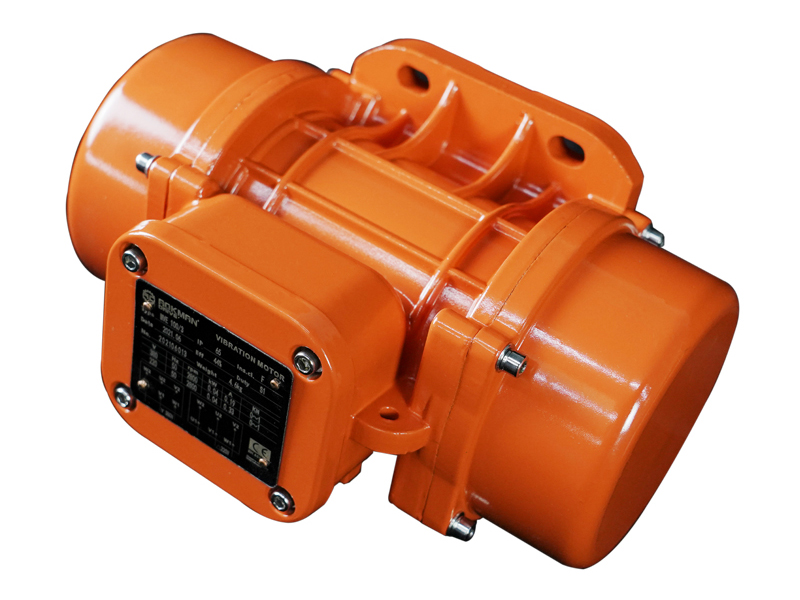

MVE Series 3 Phase Asynchronous Vibration Motors / Electric Vibrators
MVE Series 3 Phase Asynchronous Vibration Motors / Electric Vibrators
MVE Series 3 Phase Asynchronous Vibration Motors / Electric Vibrators
1 2 3

MVE Series 3 Phase Asynchronous Vibration Motors / Electric Vibrators

  • Centrifugal Force: up to 250 kN
  • Rated Voltage: 220/380V AC
  • Frequency: 50, 60 Hz
  • Poles: 2, 4, 6, 8
  • Insulation Class: F
  • Ingress Protection: IP55, IP65, IP66
  • Duty Cycle: S1
Share With :

AOKMAN DRIVE® MVE Series 3 Phase Asynchronous Vibration Motors / Electric Vibrators can be applied to various applications with its superior performance, such as vibrating screen, vibrating conveyor, vibrating feeder etc. Customizable installation dimensions to replace the vibration motors from other manufacturers and brands.

Features:

  • Reasonable design and compact size, light weight.
  • Totally enclosed structure, can be applied to the dusty applications without explosion-proof requirements.
  • High efficiency
  • Low noise
  • Standard or customizable installation dimensions and specifications
  • Optional PTC130 temperature sensor

Specifications:

§ Ambient Temperature: -20°C ~ +40°C
§ Altitude: ≤ 1000 m
§ Rated Centrifugal Force: up to 250 kN
§ Voltage: 220/380 V (or request)
§ Frequency: 50/60 Hz
§ Poles: 2, 4, 6, 8
§ Speed:
50Hz - 3000, 1500, 1000, 750 rpm
60Hz - 3600, 1800, 1200, 900 rpm
§ Insulation Class: F
§ Ingress Protection: IP55, IP65, IP66
§ Duty Cycle: S1
§ Cooling: IC410
§ Mounting: Foot
