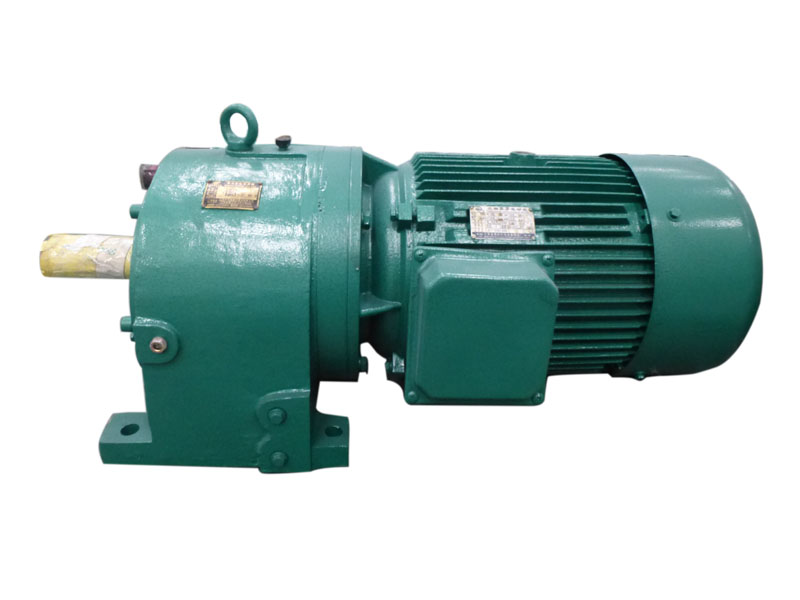

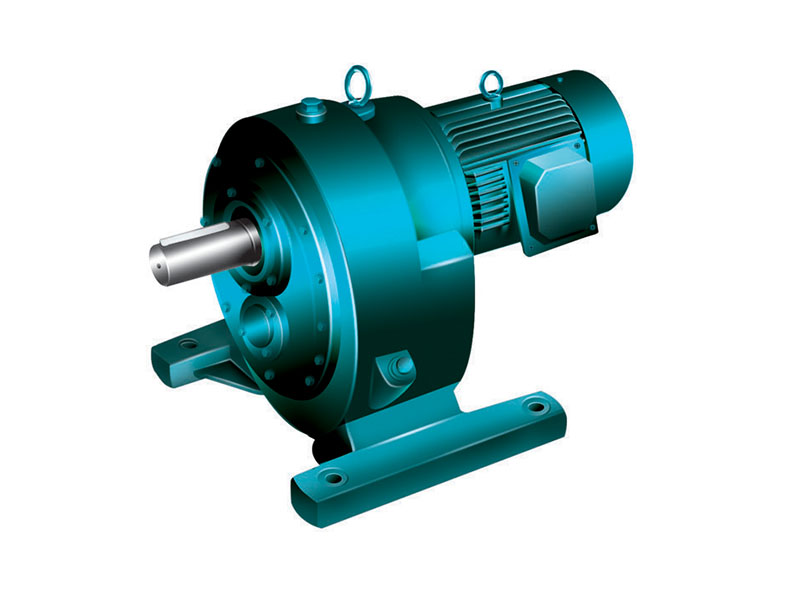

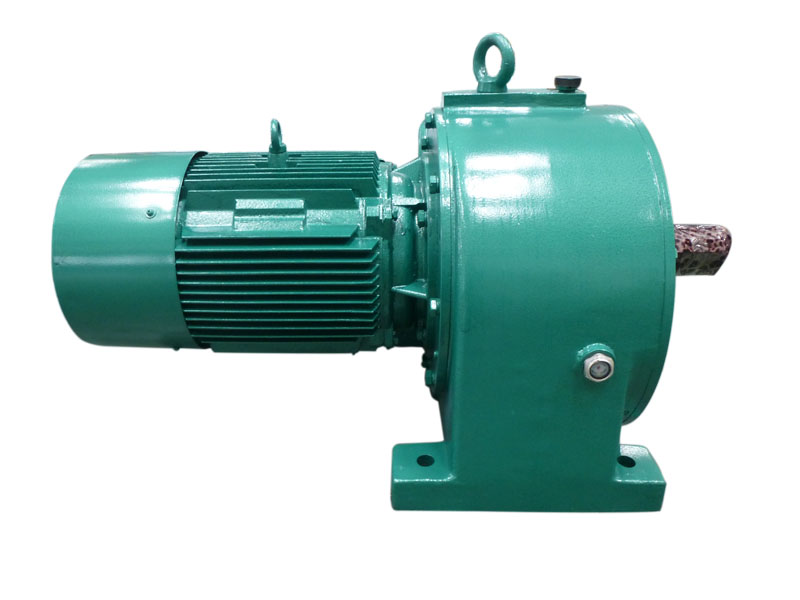

TY Series Coaxial Gear Motors
1 2 3

TY Series Coaxial Gear Motors

  • Input Power: 0.55KW~90KW
  • Nominal Ratio: 14~100
  • Linear Velocity: ≤20m/s
  • Center Distance: 50~250mm
  • Working Temperature: 0℃~40℃
  • Shafts Position: In Line
  • Installation Form: Foot Mounted
Share With :

Components:

1. Housing: Gray Iron
2. Gears: High Quality Alloy Steel, Hardened Involute Gears, Carburizing, Quenching, Grinding, Gear Accuracy 6 Class
3. Input Configurations:
Equipped with Electric Motors (3 Phase Asynchronous AC Motor, 4 Poles, Motor Mounting B5/B35)
4. Output Configurations:
Keyed Solid Shaft Output

Models:

TY50~TY250

Features:

1. Input shaft and output shaft are located in one same axis
2. Clockwise or counterclockwise rotation is allowed
3. Configured with 3 phase asynchronous motors(4 Poles)
4. Motor Mounting: B5, B35
5. Small size, high load capacity, long service life, low noise, high efficiency
6. Gear linear velocity (gear tangential speed) is not more than 20m/s

Parameters:

Models Input Power Nominal Ratio Output Shaft Dia.(m6) Weight
TY50 0.55KW~1.1KW 14~28 24mm 25KG
TY63 0.55KW~1.5KW 14~40 25mm 32KG
TY80 1.1KW~3KW 14~40 35mm 46KG
TY100 1.5KW~5.5KW 14~56 45mm 75KG
TY112 1.5KW~7.5KW 14~80 50mm 88KG
TY125 2.2KW~11KW 14~80 55mm 99KG
TY140 3KW~15KW 14~90 65mm 155KG
TY160 3KW~22KW 14~100 75mm 184KG
TY180 4KW~37KW 14~100 85mm 257KG
TY200 5.5KW~45KW 14~100 95mm 315KG
TY224 7.5KW~55KW 14~100 100mm 428KG
TY250 11KW~90KW 14~100 110mm 593KG
Notes:
1. Input Speed n1=1500rpm
2. Nominal Ratio: 14, 16, 18, 20, 22.4, 25, 28, 31.5, 35.5, 40, 45, 50, 56, 63, 71, 80, 90, 100
3. Output shaft tolerance m6

Installation:

Foot Mounted
Inclination angle of the mounting position is not more than 20 degrees

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling
