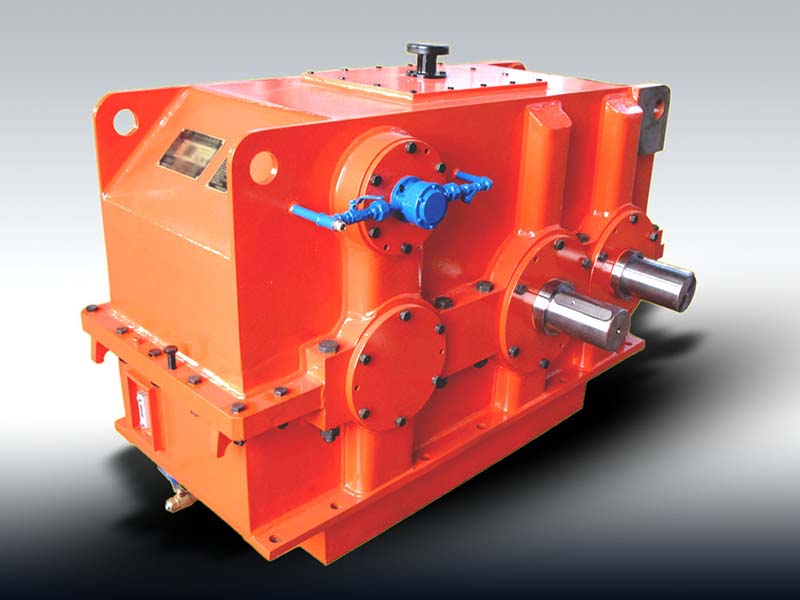

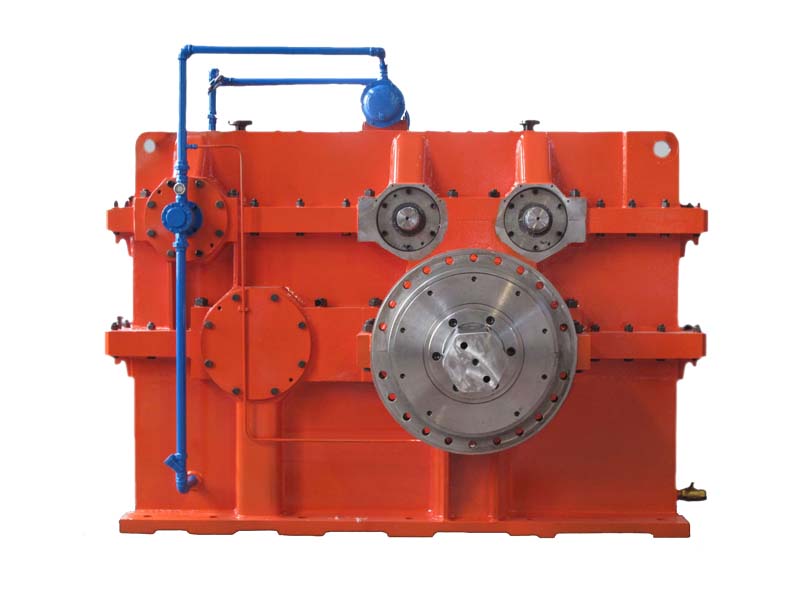

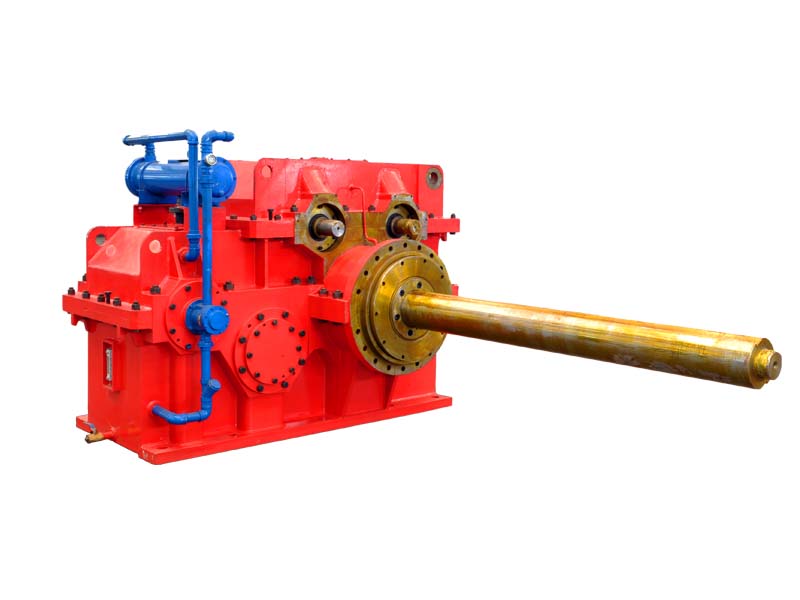

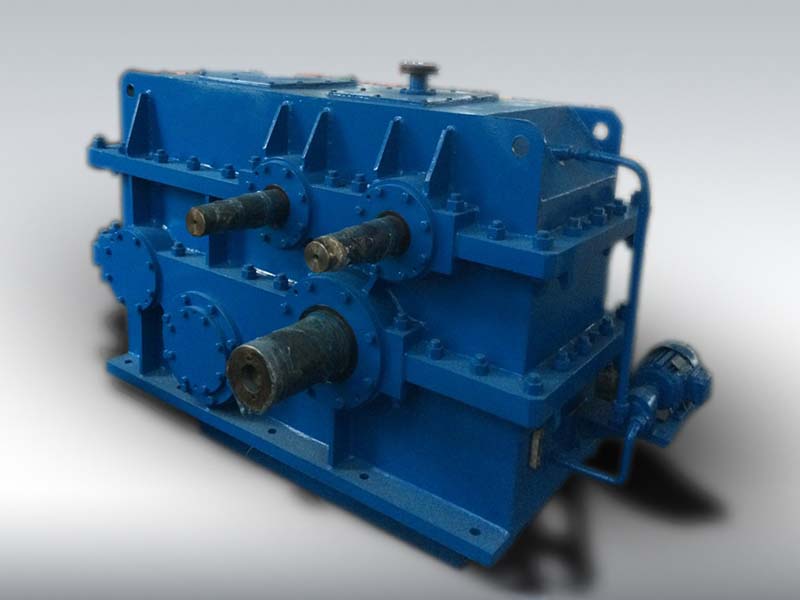

Brick Machine Gearboxes/Gear Units

  • Rated Power: 55kW~315kW
  • Input Speed: 500~750r/min
  • Output Speed: 20~45r/min
  • Center Distance: 750~1500mm
  • Parameters: Customizable
Share With :

Models:

  • 2 Stage - JZL750~JZL900
  • 3 Stage - JZS1000~JZS1500

Features:

  • Specially designed and optimized gearboxes for brick machine (block machine)
  • 2~3 stage gear transmission
  • Customizable sizes and parameters according to the customer requirements
  • High reliability, high performance, high efficiency
  • Other supporting gearboxes for brick production line: Bevel Helical Gear Motors, Planetary Gearboxes, Cycloidal Reducers, Electric Rollers

Parameters:

Models Input Power(kW) Input Speed(RPM) Output Speed(RPM) Center Distance(mm)
JZL750 55~75 600~700 30~45 750
JZL850 90~110 560~650 35~40 850
JZL900 110~132 500~600 30~35 900
JZS1000 132~160 625~750 30~35 1000
JZS1150 180~200 500~600 22~26 1150
JZS1300 250~280 560~750 22~26 1300
JZS1400 280~315 560~750 22~26 1400
JZS1500 315 500~650 20~25 1500

Applications:

  • Brick Machine
  • Brick Production Line

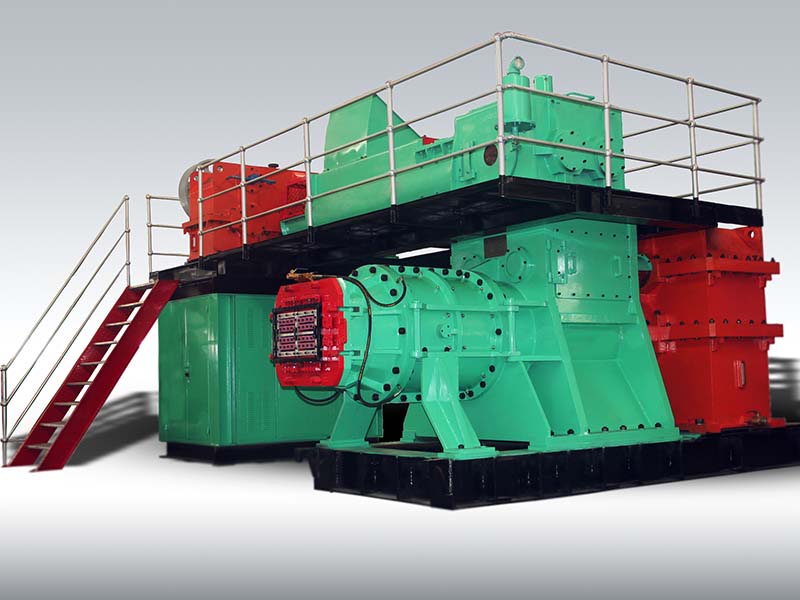

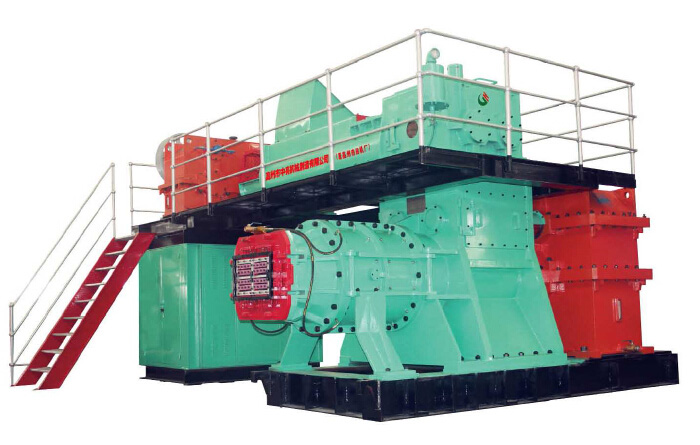

Brick Machine Gearboxes in Brick Production Line
